Edgeboard Connectors Overview

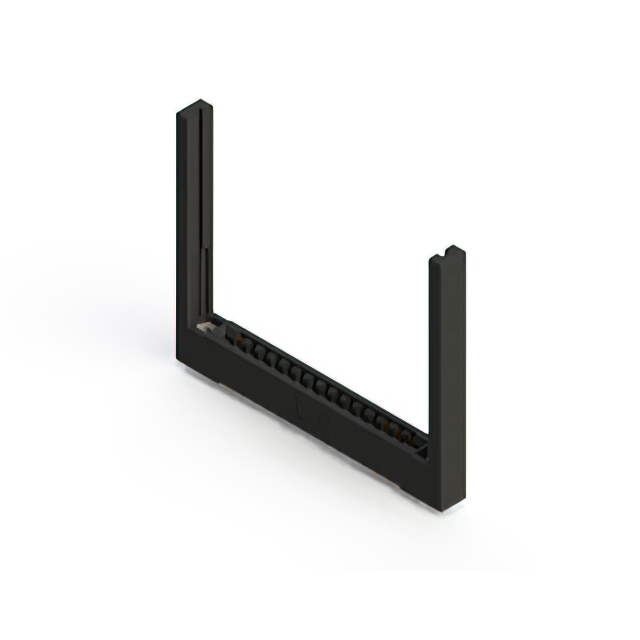

The EDAC Inc. 357-030-560-268 is a standard card edge connector featuring 30 positions in a dual female configuration. It utilizes a 0.156-inch (3.96 mm) pitch and supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). The contacts are gold-plated copper alloy with a half-beam termination style, ensuring reliable signal transmission. Designed for vertical through-hole mounting, the housing is constructed from black thermoplastic polyester. This component operates within a temperature range of -40°C to +105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated half-beam terminals for enhanced conductivity and durability
• Vertical through-hole solder pin termination for stable PCB integration

Edgeboard Connectors Applications

• Medical interconnect systems requiring robust signal paths
• Agricultural technology equipment operating in harsh environments
• Industrial control modules needing reliable vertical connectivity

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and flange characteristics. Ensure compatibility with target PCB stack-up dimensions before ordering. Confirm regional availability as distribution status may vary by location. Cross-reference the full part number with authorized distributor catalogs to validate current manufacturing status and lead times.

Edgeboard Connectors Selection Notes

Select this model when a dual-sided card edge interface is required for 30-position applications. The 3.96 mm pitch accommodates standard board thicknesses up to 1.78 mm. Verify that the vertical mounting orientation aligns with the mechanical design constraints. Consider the operating temperature range and environmental compliance requirements for the intended deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 357 series, which specializes in standard card edge connectors. The series offers various position counts and termination styles tailored for diverse industrial and commercial applications. The 357 series is recognized for its durable construction and consistent performance in demanding electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 357 Ordering Guide for verified substitute part numbers. Changes in contact count or row configuration require re-evaluation of mechanical fit. Verify that alternative models maintain identical pitch and termination specifications.
