395-006-544-607

$7.94

Description：CONN EDGE SINGLE FML 6POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:bfffa0f881eb Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-006-544-607 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 6POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-006-544-607

Description：CONN EDGE SINGLE FML 6POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：6
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-006-544-607

395-006-544-607

Edgeboard Connectors Overview

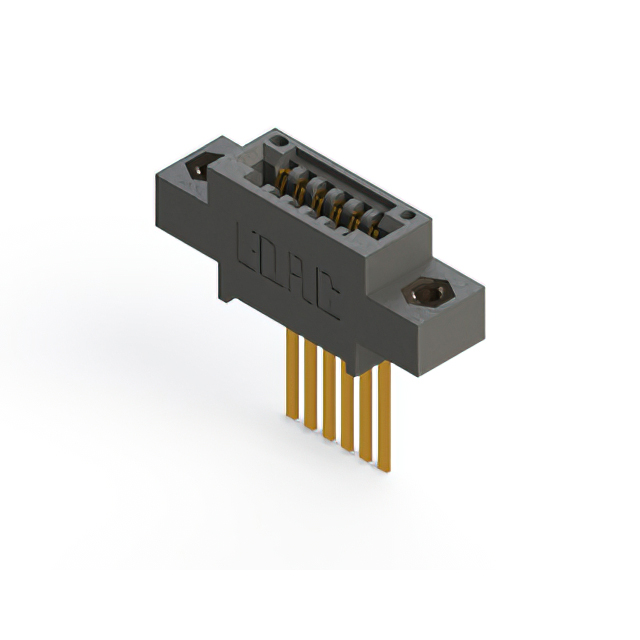

The EDAC Inc. 395-006-544-607 is a single-row card edge connector designed for vertical board-to-board interconnection. It features six female contacts with a 0.100-inch (2.54mm) pitch, suitable for connecting circuit boards with thicknesses ranging from 0.054 to 0.070 inches. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic polyester insulator. It supports wire wrap termination and operates within a temperature range of -40°C to 105°C. This component complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

Single row configuration with six female contacts for reliable signal transmission
Gold-plated copper alloy contacts ensure durable electrical performance
Vertical mounting orientation facilitates standard PCB integration
Compatible with circuit board thicknesses between 1.37mm and 1.78mm

Edgeboard Connectors Applications

Industrial control systems requiring robust edge connections
Telecommunications equipment interface modules
Consumer electronics internal board interconnects
Automotive electronic control unit assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact plating and flange specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS3 compliance status through manufacturer certificates. Validate that the single-row configuration meets system density requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this connector when a low-profile, single-row interface is required for thin circuit boards. The 0.100-inch pitch accommodates standard trace spacing. Consider the wire wrap termination method for manual or automated assembly processes. Evaluate the operating temperature range against environmental conditions. Verify mechanical stability needs regarding flange mounting options.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of edgeboard connectors, which are engineered for high-reliability applications. The series offers various position counts and termination styles. The 395-006 variant specifically addresses compact design constraints with minimal footprint requirements while maintaining industrial-grade durability and electrical consistency.
