395-059-542-678

Edgeboard Connectors Overview

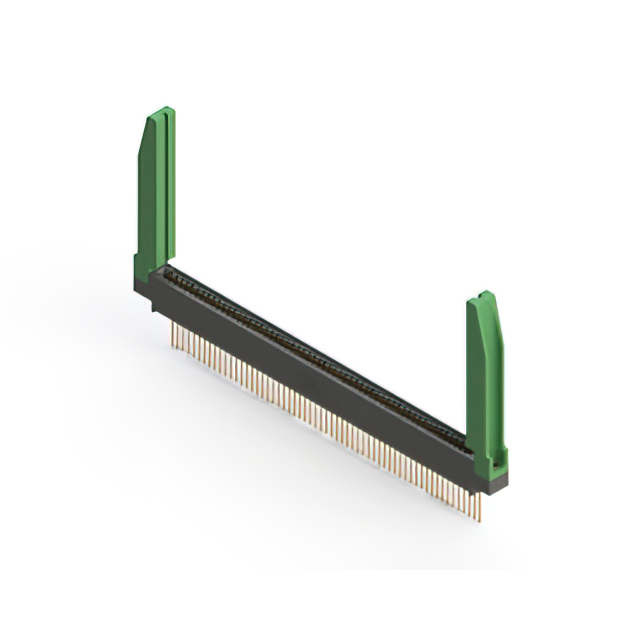

The EDAC Inc. 395-059-542-678 is a card edge connector from the 395 series, designed for single-edge board applications. It features 59 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes female cantilever contacts made of copper alloy with gold plating. It supports PCB thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C. The housing is green thermoplastic polyester, and it includes top-mounting flanges with M3 threaded inserts.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge boards
• Gold-plated cantilever contacts ensure reliable electrical connection
• Integrated top-mounting flanges with M3 threaded inserts for secure panel attachment

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard 0.100 inch pitch modules
• Test and measurement instrumentation with modular board architectures

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, contact finish, and mounting style. Ensure the target application accommodates the specified PCB thickness range and thermal operating limits. Confirm RoHS compliance status matches project requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 59-position interface is required for vertical mating. The 0.100 inch pitch dictates compatible board trace spacing. Verify that the cantilever contact type aligns with the insertion force requirements of the host system. Ensure the green insulator material meets environmental constraints for the intended deployment environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series, which provides standard card edge connectors for various industrial and commercial applications. The series offers multiple position counts and mounting options. The 395-059 variant specifically addresses needs for moderate density connections with secure mechanical retention via flange mounts.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part number 345-059-542-678, which shares identical electrical and mechanical specifications but differs in housing color. Verify that any substitute maintains the same 59-position count, 0.100 inch pitch, and gold contact finish to ensure functional compatibility.
