396-015-558-101

Edgeboard Connectors Overview

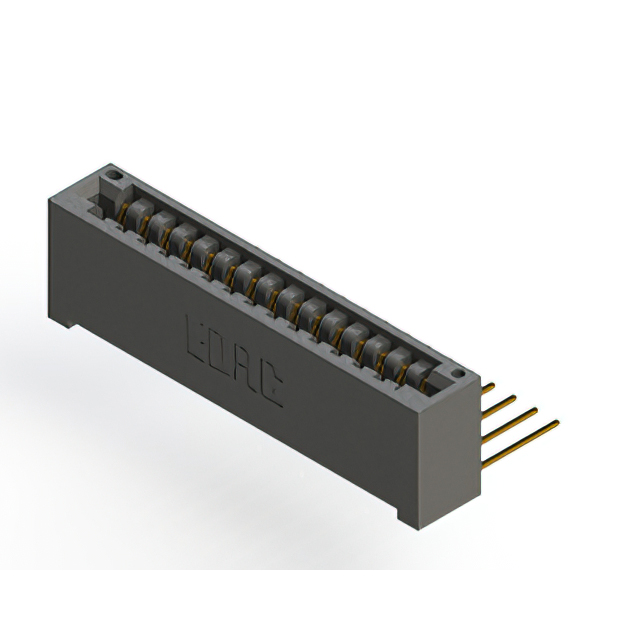

The EDAC Inc. 396-015-558-101 is a standard card edge connector from the 396 series, designed for vertical board-to-board or board-to-backplane connections. It features 15 positions with a contact pitch of 3.175 mm (0.125 inches). The connector supports a maximum PCB thickness of 1.57 mm and utilizes gold-plated contacts to ensure reliable signal transmission. This single-edge female connector is characterized by its black insulator body and is engineered for high-temperature environments, offering robust mechanical stability and electrical performance for demanding industrial applications.

Edgeboard Connectors Feature Summary

• Vertical mounting configuration for secure board integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• High-temperature resistant insulator materials for thermal stability
• Single-edge design compatible with standard card edge PCBs

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing reliable vertical interfaces
• Automotive electronics utilizing high-temperature connectors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm pin count, plating type, and flange options. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm RoHS compliance status through the manufacturer's latest documentation. Check for any regional distribution restrictions or limited availability notices associated with this specific part number.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-edge connection with 15 positions is required. The 3.175 mm pitch suits standard card edge layouts. Consider the gold plating for longevity in corrosive environments. Verify that the high-temperature rating meets the operational thermal requirements of the specific application scenario compared to standard commercial grade alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series, which specializes in standard card edge connectors. The series offers various position counts and termination options. The 396-015-558-101 specifically addresses the need for a 15-position vertical interface. It shares design principles with other 396 models but differs in pin count and specific mounting features defined by its unique model code.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC 396 series variants only if they match the exact 15-position count, 3.175 mm pitch, and vertical orientation. Verify mechanical dimensions and electrical ratings before considering alternative sources.
