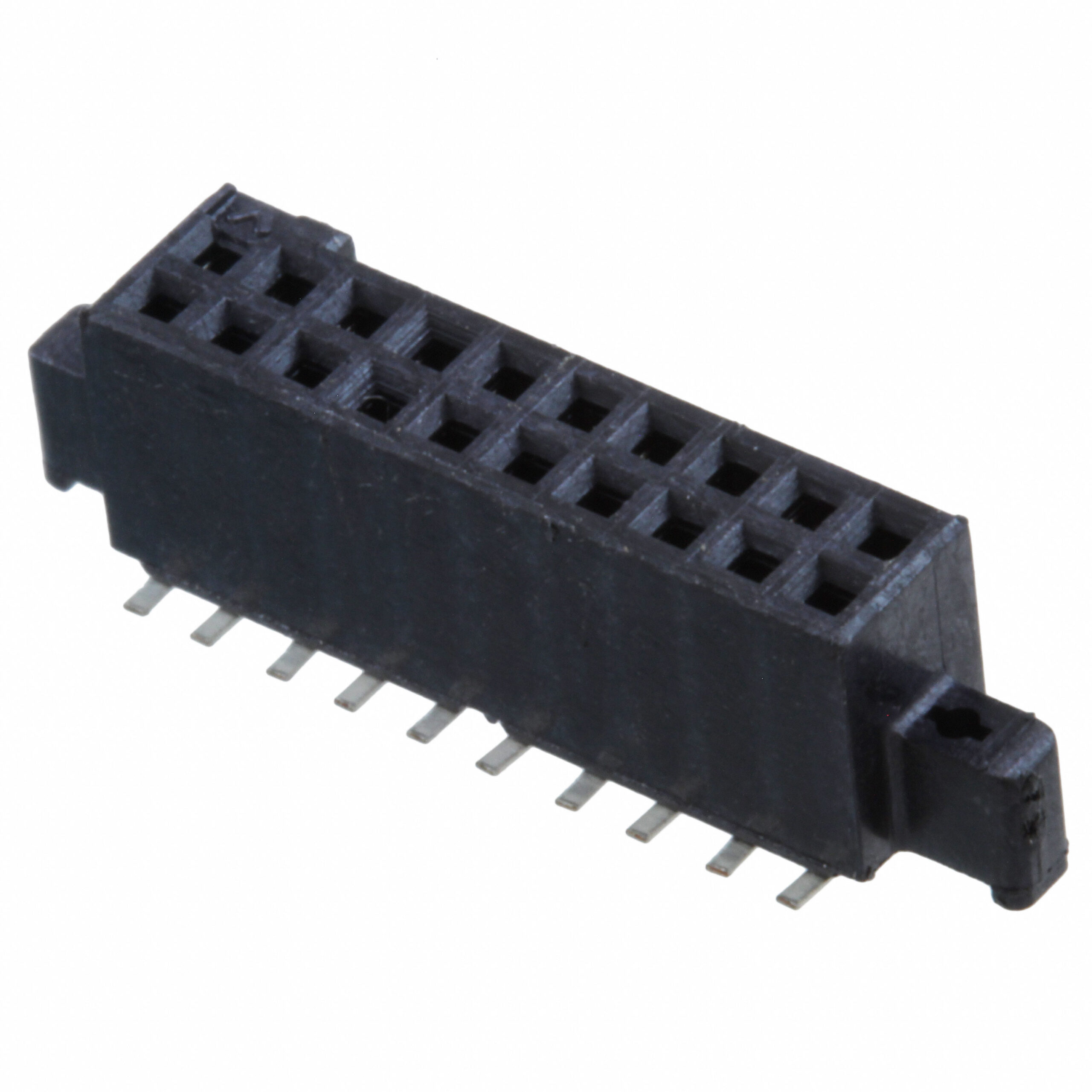

5-147413-3

5-147413-3 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT 20POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 5-147413-3

• Description：CONN RCPT 20POS 0.05 GOLD SMD
• Series：AMPMODU 50/50 Grid
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：20
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.187" (4.75mm)
• Contact Length - Post：-
• Operating Temperature：-65°C ~ 105°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：6.35mm, 8.13mm, 9.91mm
• Ingress Protection：-
• Features：Board Lock, Pick and Place
• Current Rating (Amps)：-
• Voltage Rating：30VAC

Headers, Receptacles, Female Sockets datasheet and documents for 5-147413-3
