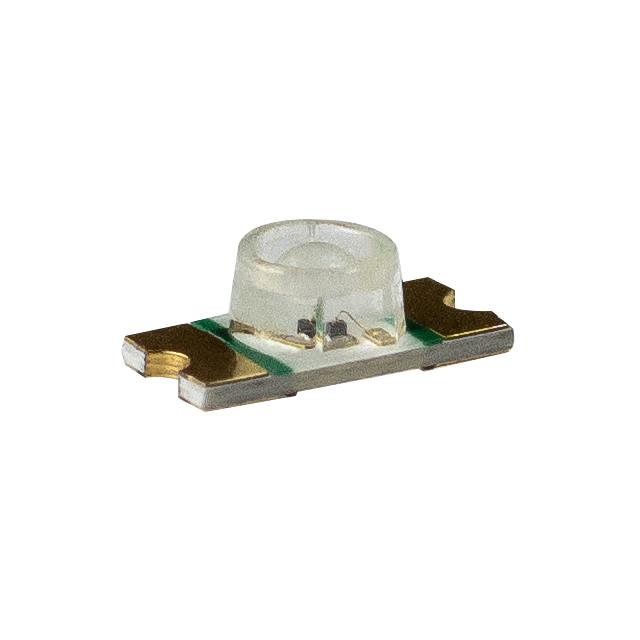

599-2500-127F

$0.46

Description：LED WHITE CLEAR 1206 SMD
Series：559
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:578efd3f0ea4 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

599-2500-127F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED WHITE CLEAR 1206 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 599-2500-127F

Description：LED WHITE CLEAR 1206 SMD
Series：559
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：-
Lens Color：Yellow
Lens Transparency：Clear
Millicandela Rating：804.5mcd
Lens Style：Irregular
Lens Size：-
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.23mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 599-2500-127F

599-2500-127F

LED Indication - Discrete Overview

The Dialight 599-2500-127F is a single-color surface-mount LED indicator in the 599 MicroLED series. It features a cool white illumination color housed in a 1206 (3216 metric) package with an integrated lens. The component operates at a forward current of 20 mA and delivers a luminous intensity ranging from 417 mcd to 1.192 cd. It provides a wide viewing angle of 140 degrees and functions within an operating temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Single-color SMD LED design with integrated lens for discrete indication
Wide 140-degree viewing angle for enhanced visibility
Cool white illumination output suitable for panel and board status signaling

LED Indication - Discrete Applications

Panel-mounted status indicators
Board-level circuit monitoring
Electronic device power and activity signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and bin code requirements before ordering, as luminous intensity can vary by manufacturing batch. Confirm that the 1206 footprint matches your PCB layout constraints. Ensure thermal management capabilities align with the specified operating temperature range during integration.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-intensity white indicator is required for space-constrained designs. The 1206 package offers a balance between visibility and board real estate. Consider the 140-degree viewing angle for applications requiring broad line-of-sight access to the indicator.

LED Indication - Discrete Part Context

This part belongs to the Dialight 599 MicroLED series, which provides various single-color options including blue, green, red, yellow, and white. These LEDs are designed for surface-mount technology and are commonly used in industrial and commercial electronics where reliable visual feedback is critical.
