887-062-521-802

Edgeboard Connectors Overview

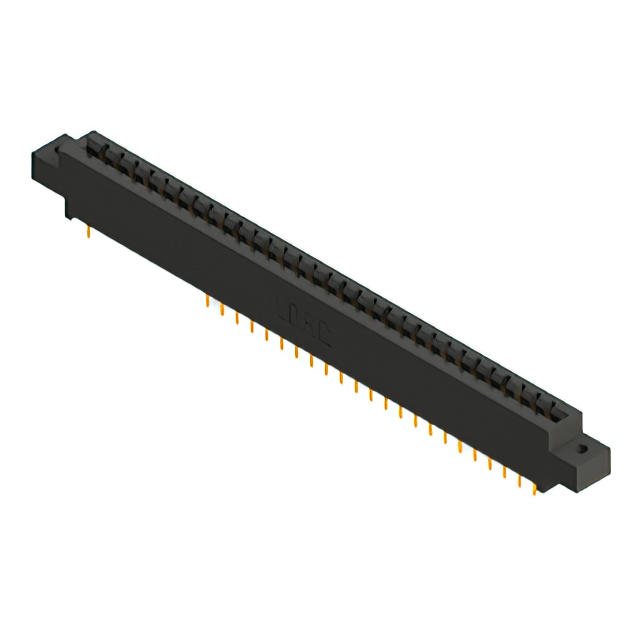

The EDAC Inc. 887-062-521-802 is a standard high-temperature card edge connector receptacle designed for robust electronic interconnections. It features 62 positions arranged in a dual female configuration with a 3.96 mm (0.156 inch) terminal pitch. The component utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. Constructed with a Polyphenylene Sulfide (PPS) insulator, it supports panel mount installation at a vertical angle. The connector is engineered to accommodate printed circuit boards with a thickness of 1.57 mm (0.062 inch), providing stable mechanical engagement in demanding thermal environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• High-temperature resistant PPS insulator material
• Gold-plated terminals for enhanced conductivity
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Medical interconnect systems requiring high reliability
• Agricultural technology equipment operating in harsh conditions
• Industrial control panels with vertical mounting constraints
• High-temperature electronic assembly applications

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact pin count, termination style, and mounting options. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the dual female configuration aligns with the mating card edge requirements. Cross-reference the part number with current distributor availability as supply status may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a dual-row connection is required for thicker PCBs up to 1.57 mm. The 3.96 mm pitch allows for higher current capacity compared to finer pitches. Choose the PPS-based 887 series over DAP-based alternatives for superior thermal stability. Ensure the vertical panel mount form factor fits the enclosure design constraints without requiring additional adapters.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 Series, which specializes in high-temperature card edge connectors. The series is characterized by its use of Polyphenylene Sulfide (PPS) insulation, offering better heat resistance than standard materials. The 887 line provides various positioning and termination options to suit diverse industrial and medical applications requiring durable vertical connections.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 887 models with matching 62-position dual configurations. Verify that alternative part numbers maintain the identical 3.96 mm pitch and 1.57 mm board thickness compatibility. Ensure any replacement retains the gold-plated contact finish and PPS housing material for equivalent performance.
