895-052-524-812

Edgeboard Connectors Overview

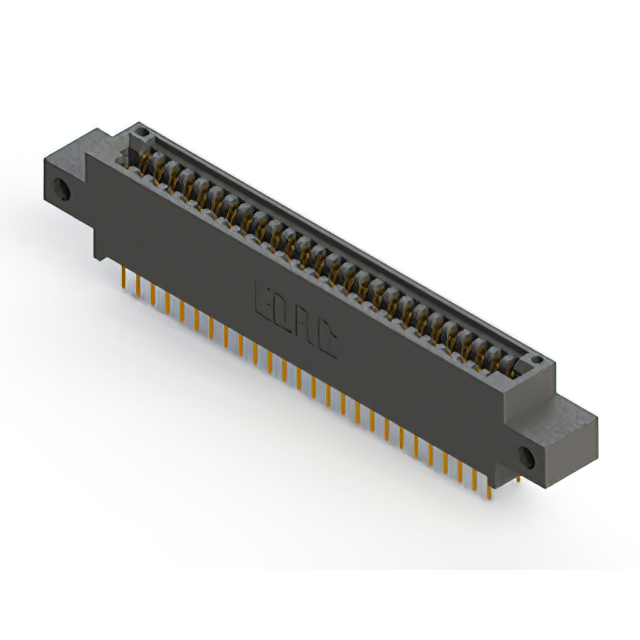

The EDAC Inc. part number 895-052-524-812 is a standard card edge connector receptacle featuring 52 positions arranged in a dual row configuration. It utilizes a 0.100-inch (2.54 mm) pitch and is designed for non-specified dual-edge cards with thicknesses ranging from 0.054 to 0.070 inches. The component employs gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. It supports panel mount installation with a right-angle orientation and uses solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for reliable signal transmission
• Gold-plated contacts ensure corrosion resistance and stable conductivity
• Polyphenylene sulfide housing provides high thermal stability
• Right-angle panel mount design facilitates compact system integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules
• Medical device circuit boards
• Aerospace instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact physical dimensions, termination style, and plating specifications. Ensure compatibility with target PCB stack-up and mating card thickness requirements before procurement. Confirm RoHS compliance status through current manufacturer declarations.

Edgeboard Connectors Selection Notes

Select this connector when a right-angle, panel-mount solution is required for dual-edge cards. Verify that the 52-position count matches the interface requirements. Ensure the 0.100-inch pitch aligns with the board layout constraints. Confirm the operating temperature range meets environmental demands.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific model represents a high-density option suitable for applications needing substantial I/O connections within a constrained vertical profile.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Cross-reference pin counts, pitch, and mounting orientation. Generic equivalents may lack precise dimensional or material compatibility.
