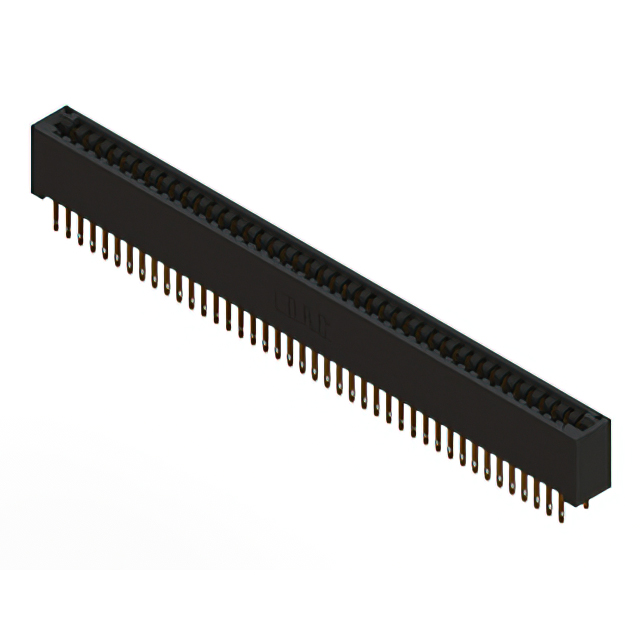

896-084-500-201

$80.97

Description：CONN EDGE DUAL FMALE 84POS 0.125
Series：896
Mfr：EDAC Inc.
Package：Bulk

SKU:c7917168c468 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

896-084-500-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 84POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 896-084-500-201

Description：CONN EDGE DUAL FMALE 84POS 0.125
Series：896
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：42
Number of Positions：84
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.125" (3.18mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 896-084-500-201

896-084-500-201

Edgeboard Connectors Overview

The EDAC Inc. 896-084-500-201 is a high-temperature card edge connector receptacle featuring 84 positions with dual female contacts. It utilizes a 0.125-inch (3.175 mm) pitch and supports board thicknesses of 1.57 mm. The component employs solder eyelet termination for secure panel mounting. Gold-plated copper alloy contacts ensure reliable signal transmission, while the polyphenylene sulfide housing provides thermal stability.

Edgeboard Connectors Feature Summary

High-temperature resistant construction suitable for demanding environments
Dual-sided female contact configuration for comprehensive connectivity
Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

Industrial control systems requiring high-temperature reliability
Automotive electronics applications
Medical equipment interfaces
Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 84-position configuration and 0.125-inch pitch specifications. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper mechanical fit. Check RoHS3 compliance status if environmental regulations apply to the assembly. Ensure the solder eyelet termination method aligns with the manufacturing process capabilities.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the application environment. The dual female contact design offers robust connection stability for edge cards. Consider the polyphenylene sulfide material properties for thermal endurance beyond standard connectors. Evaluate the panel mount installation style against available chassis space constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 896 series, designed specifically for high-temperature card edge applications. The series features durable materials and gold-plated contacts to maintain performance in harsh conditions. It serves as a reliable interface solution for industrial and automotive sectors where thermal stability is paramount.
