A18R186HCR

Overview

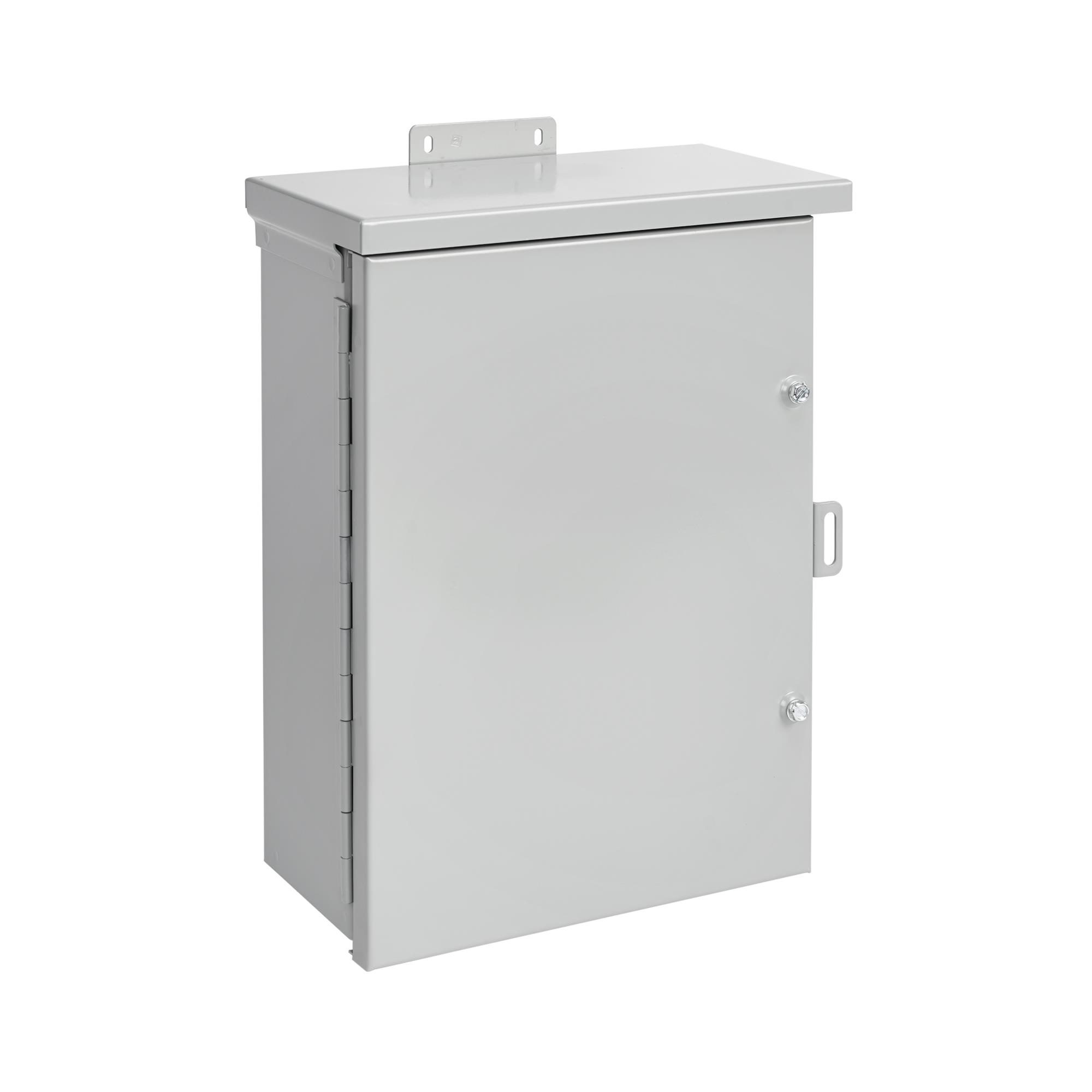

The Hoffman A18R186HCR is a medium-duty, single-door hinged-cover enclosure constructed from 16-gauge galvanized steel. It measures 18 inches in height, 18 inches in width, and 6 inches in depth. The unit features a polyester powder-coated ANSI 61 gray finish and includes a drip shield top with seam-free sides to protect against rain, sleet, and snow. It carries UL 50/50E and CUL listings for Type 3R protection.

Feature Summary

• Drip shield top and seam-free construction provide protection against rain, sleet, and snow
• Continuous hinge utilizes stainless steel pins for durability
• Padlockable hasp adds security to stored equipment
• Suitable for wall mounting applications

Applications

• Outdoor electrical component protection
• Wiring protection in weather-exposed environments
• Wall-mounted junction box installations

Procurement Notes

Verify the specific NEMA Type 3R rating and UL/CUL certifications match project requirements. Confirm dimensions (18x18x6 inches) and material thickness (16 gauge) align with mechanical constraints. Ensure the ANSI 61 gray color and galvanized steel finish are acceptable for the installation environment. Check for included knockouts or mounting hardware specifications.

Selection Notes

Select this model for outdoor applications requiring protection from falling water and ice. The 18-inch square footprint suits moderate-sized electrical assemblies. The hinged cover design allows easy access compared to removable door variants. Consider the 6-inch depth for internal component clearance. Verify that the Type 3R rating meets local code requirements for the specific exposure level.

Part Context

This enclosure belongs to the Hoffman Medium series of metal junction boxes. It is designed for general industrial use where basic environmental protection is needed. The product line emphasizes durability through galvanized steel construction and standardized mounting options. It serves as a protective housing for switches, relays, and wiring connections in commercial and industrial settings.

Replacement Considerations

No public confirmed substitute part numbers are available.
