A2128BAPSS

Overview

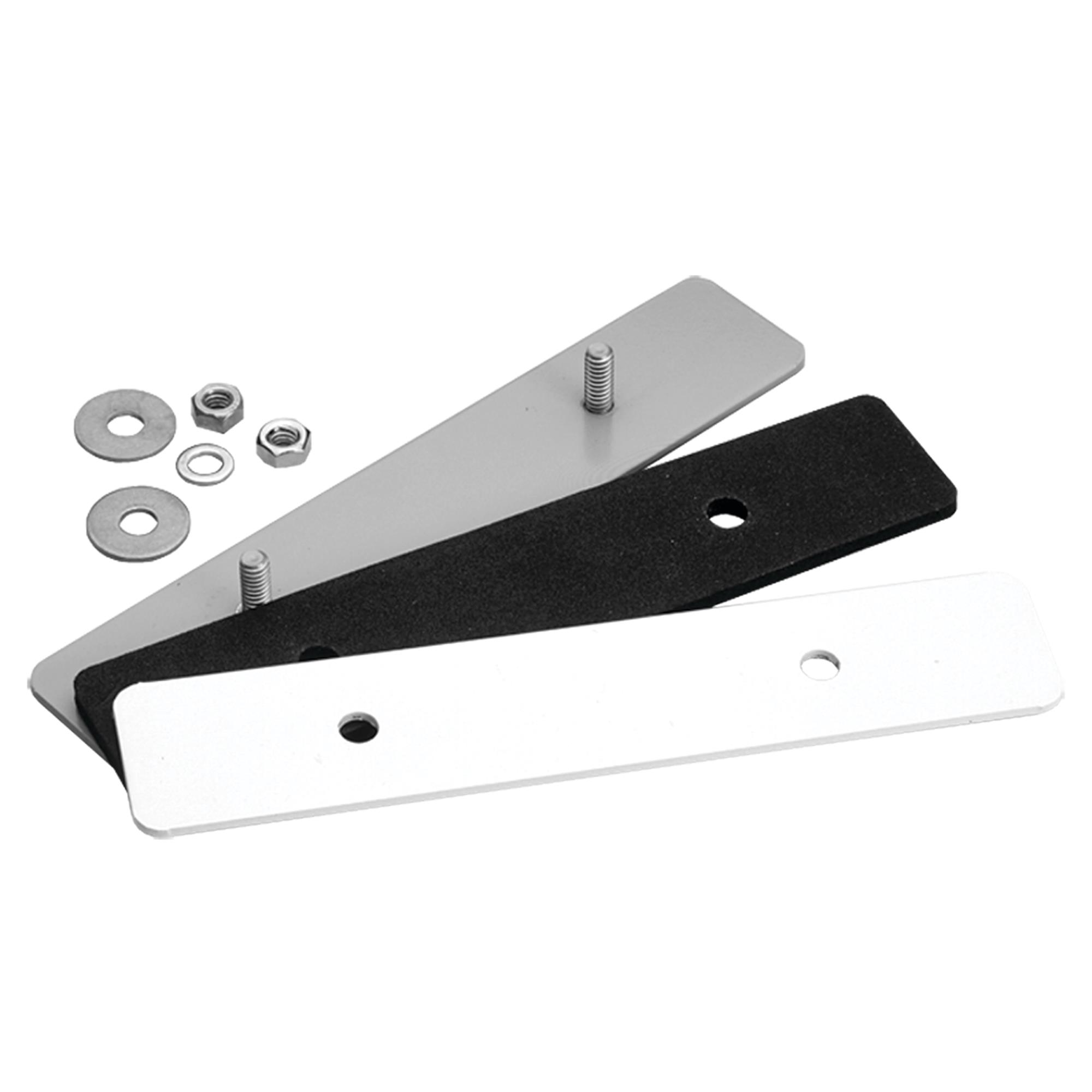

The Hoffman Enclosures A2128BAPSS is a blank adapter plate constructed from heavy-gauge Type 304 stainless steel. Designed for use with NEMA 4X disconnect enclosures, this component serves to cover flange cutouts when disconnect switches are not installed. The plate features an oil-resistant gasket to maintain dust-tight and oil-tight integrity within the enclosure assembly.

Feature Summary

• Constructed from heavy-gauge Type 304 stainless steel
• Includes oil-resistant gasket for sealing
• Maintains dust-tight and oil-tight enclosure qualities

Applications

• Covering flange cutouts in disconnect enclosures
• Installation in NEMA 4X disconnect assemblies
• Sealing unused openings where disconnects are absent

Procurement Notes

Verify compatibility with specific disconnect enclosure models before procurement. Confirm that the required seal type matches the application's environmental exposure. Ensure the material specification aligns with corrosion resistance requirements. Check dimensional fit against existing flange cutouts to guarantee proper coverage and sealing performance.

Selection Notes

Select this part only when covering unused flange cutouts in stainless steel disconnect enclosures is required. It is specifically designed for NEMA 4X applications requiring oil and dust tightness. Do not use for general panel mounting or non-sealed environments. Ensure the enclosure model supports this specific adapter plate configuration.

Part Context

This component is an accessory for Hoffman disconnect enclosures. It functions as a blanking plate to maintain environmental protection ratings when internal components are omitted. It is part of the broader Hoffman enclosure system designed for industrial electrical distribution and control applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
