AL1411A-YN-020MA

LED Indication - Discrete Overview

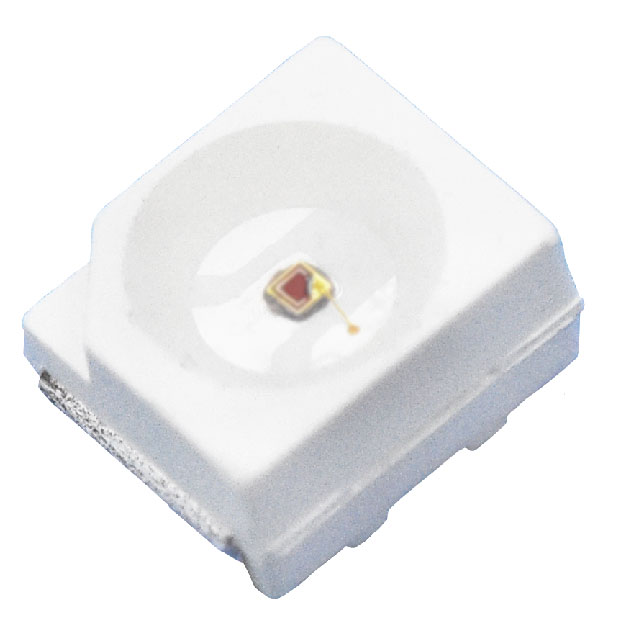

The AL1411A-YN-020MA is a surface-mount LED from Solidlite, housed in a 2PLCC package. It emits yellow light at a wavelength of 590nm. The component features a millicandela rating of 950mcd and operates with a maximum DC forward current of 20mA. It utilizes a round lens with a flat top style and has a maximum height of 1.95mm.

LED Indication - Discrete Feature Summary

• Yellow 590nm emission for clear visual indication
• Surface mount construction in a compact 2PLCC package
• Round lens with flat top design for optimized light distribution

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Control board activity monitoring

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact color bin and intensity grade. Ensure the procurement documentation explicitly states compliance with RoHS standards. Confirm that the supplier provides original manufacturer packaging to guarantee component authenticity and storage integrity during transit.

LED Indication - Discrete Selection Notes

Select this component when a distinct yellow visual signal is required for industrial or consumer electronics. The 2PLCC form factor supports automated pick-and-place assembly processes. Consider the 590nm wavelength for high visibility applications where standard red LEDs may not provide sufficient contrast against the background environment.

LED Indication - Discrete Part Context

This part belongs to the Solidlite 1411 series of discrete surface-mount LEDs. The series offers various color options within a standardized footprint, allowing designers to maintain consistent board layouts while changing indicator colors. The 2PLCC package is widely used in modern electronics for its reliability and space efficiency.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 2PLCC yellow LEDs with similar 590nm wavelengths and comparable forward current ratings. Verify mechanical dimensions, specifically the 1.95mm maximum height, to ensure compatibility with existing PCB silkscreen and reflow profiles.
