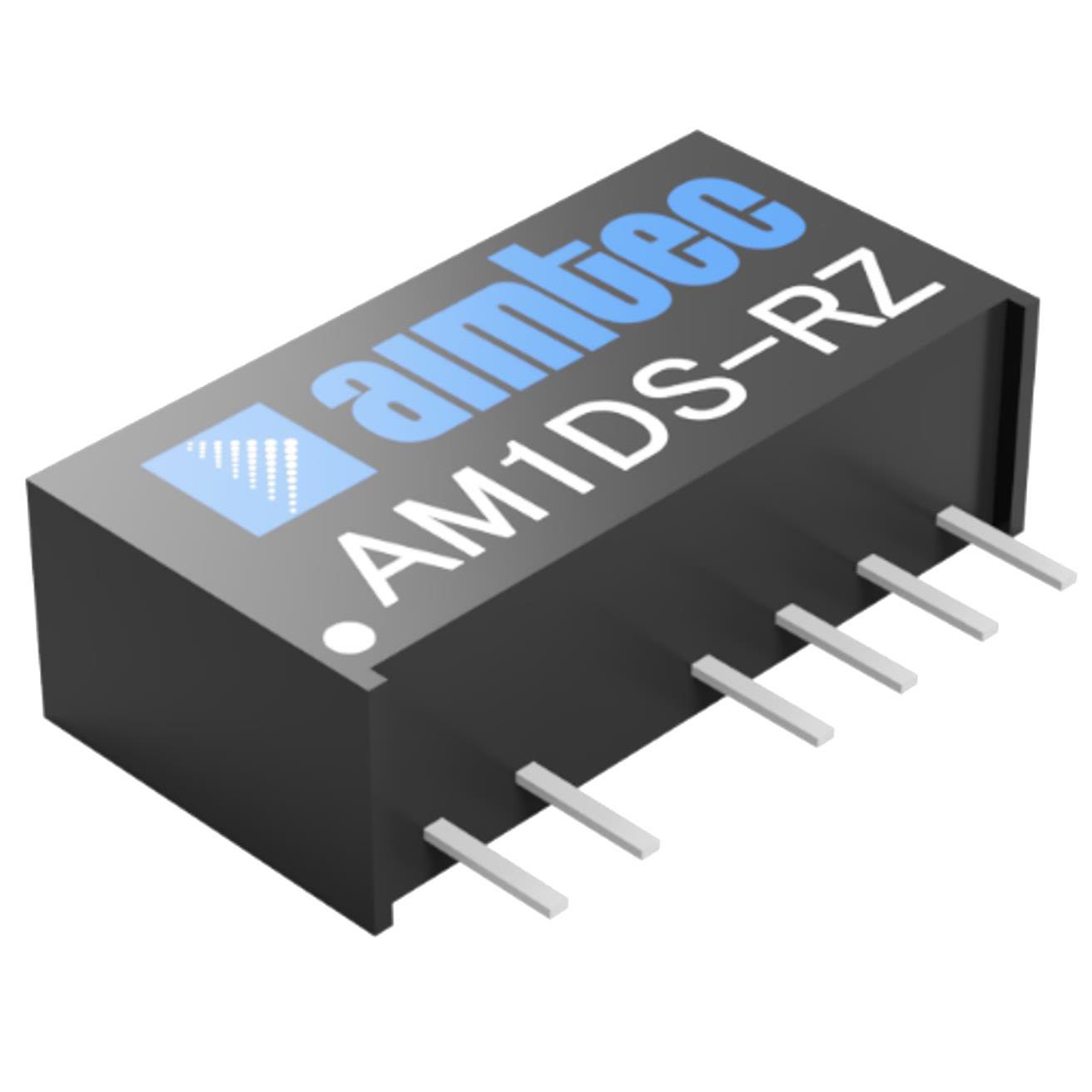

AM1DM-2412DH60MZ

AM1DM-2412DH60MZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 1W -12V DC/DC Converter. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM1DM-2412DH60MZ

• Description：1W -12V DC/DC Converter
• Series：AM1DM-MZ
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：12V, -12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：420mA, 420mA
• Power (Watts)：1 W
• Voltage - Isolation：6000 V
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
• Supplier Device Package：7-SIP
• Control Features：-
• Approval Agency：CE, cURus, UKCA
• Standard Number：60601-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AM1DM-2412DH60MZ
