APFA3011-AK13/F

LED Indication - Discrete Overview

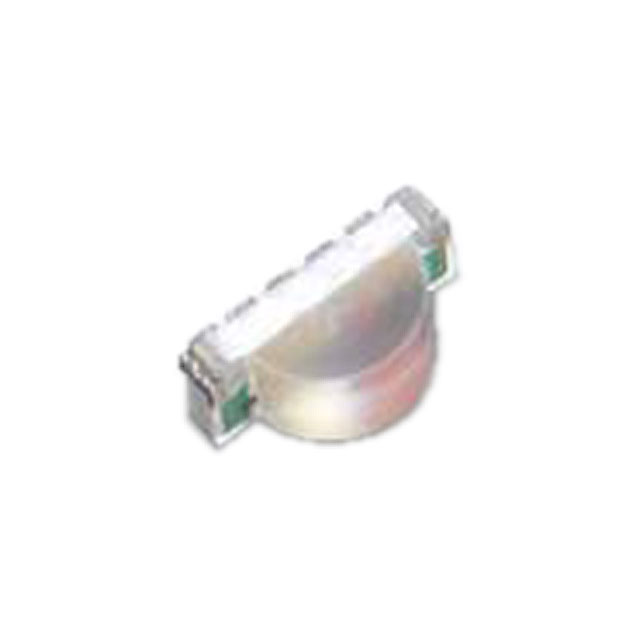

The APFA3011-AK13/F is a surface-mount RGB LED from the Kingbright HeliColour series, housed in an SMD-6 package with dimensions of 2 mm x 1 mm. It features a semitube lens shape and water clear transparency. The component emits red at 625 nm, green at 525 nm, and blue at 470 nm. Electrical specifications include a forward current of 20 mA, with forward voltages of 2.2 V for red, 3.2 V for green, and 3.3 V for blue. Power ratings are 84 mW for red and 120 mW for green and blue. It offers a 150-degree viewing angle and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue emitters into a compact right-angle surface-mount package
• Features a semitube lens design with water clear transparency for optimized light distribution
• Provides a wide 150-degree viewing angle for enhanced visibility

LED Indication - Discrete Applications

• Status indication in electronic devices
• Backlighting for displays and interfaces
• Decorative lighting applications

LED Indication - Discrete Procurement Notes

Verify the specific part number against manufacturer documentation to ensure compatibility with design requirements. Confirm that the SMD-6 package dimensions and pin configuration match the PCB footprint. Check for moisture sensitivity levels and reflow soldering profile recommendations to prevent damage during assembly. Ensure the operating temperature range meets the environmental conditions of the intended application.

LED Indication - Discrete Selection Notes

Select this component when a low-profile RGB solution with a wide viewing angle is required. The right-angle orientation suits applications where light emission needs to be directed perpendicular to the board surface. Compare forward voltage and current requirements with driver circuit capabilities to ensure proper operation. Consider the power dissipation limits for each color channel under continuous use conditions.

LED Indication - Discrete Part Context

This part belongs to the Kingbright HeliColour series, which focuses on multi-color LEDs for various indication and lighting needs. The APFA3011 variant specifically utilizes an SMD-6 package, distinguishing it from other series members that may use different form factors like SMD-4 or through-hole configurations. The series emphasizes compactness and high brightness for modern electronic designs.

LED Indication - Discrete Replacement Considerations

Consult official Kingbright documentation for verified substitute part numbers. Cross-reference electrical parameters such as forward voltage, current, and wavelength to ensure functional equivalence. Verify package dimensions and pinout compatibility before substitution.
