APTM100UM65SAG

$220.58

Description：MOSFET N-CH 1000V 145A SP6
Series：-
Mfr：Microchip Technology
Package：Bulk

SKU:5dae8a046f99 Category: Single FETs, MOSFETs Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APTM100UM65SAG is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is MOSFET N-CH 1000V 145A SP6. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for APTM100UM65SAG

Description：MOSFET N-CH 1000V 145A SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：1000 V
Current - Continuous Drain (Id) @ 25°C：145A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：78mOhm @ 72.5A, 10V
Vgs(th) (Max) @ Id：5V @ 20mA
Gate Charge (Qg) (Max) @ Vgs：1068 nC @ 10 V
Vgs (Max)：±30V
Input Capacitance (Ciss) (Max) @ Vds：28500 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：3250W (Tc)
Operating Temperature：-40°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Supplier Device Package：SP6
Package / Case：SP6

Single FETs, MOSFETs datasheet and documents for APTM100UM65SAG

APTM100UM65SAG

Single FETs, MOSFETs Overview

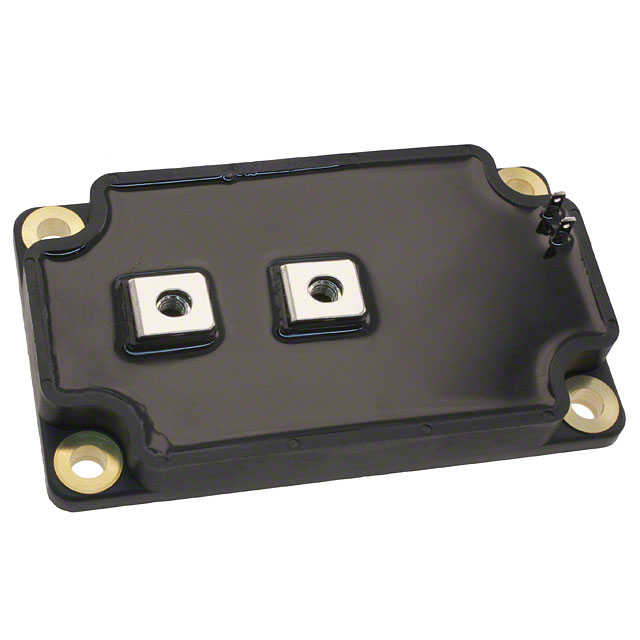

The APTM100UM65SAG is a single N-channel silicon MOSFET module from the POWER MOS 7 series, housed in an SP6 screw-mount package. It features a 1 kV drain-source breakdown voltage and a continuous drain current of 145 A at case temperature. The on-resistance is 78 mOhms at 10 V gate drive. Operating junction temperature ranges from -40°C to +150°C with a power dissipation rating of 3.25 kW. Switching characteristics include a typical turn-on delay of 18 ns, rise time of 14 ns, turn-off delay of 140 ns, and fall time of 55 ns.

Single FETs, MOSFETs Feature Summary

Integrates a single N-channel Power MOS 7 silicon die within a robust SP6 insulated baseplate module for high-power thermal management.
Provides fast switching performance with optimized internal parasitic inductance to support high-frequency operation up to 20 kHz.
Features low forward voltage drop and minimal tail current to reduce conduction losses and improve system reliability.

Single FETs, MOSFETs Applications

Industrial motor drives
High-efficiency power conversion systems
Automotive power electronics

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix 'SAG' against the official Microchip datasheet to confirm the exact electrical parameters, as variations exist within the APTM100UM family. Ensure the ordering documentation matches the required SP6 package configuration and screw-mount specifications. Cross-reference the manufacturer part number directly with the latest product change notifications to avoid discrepancies.

Single FETs, MOSFETs Selection Notes

Select this component when a single-switch configuration with 1 kV blocking capability and 145 A continuous current is required. The 78 mOhm on-resistance offers a balance between conduction loss and cost compared to lower resistance alternatives. Verify that the SP6 package dimensions and thermal interface requirements align with the target heatsink design for optimal heat dissipation at 3.25 kW power dissipation.

Single FETs, MOSFETs Part Context

This device belongs to the APTM100UM series of discrete and power modules manufactured by Microchip Technology. These modules utilize silicon technology and are designed for demanding power applications requiring high voltage and current handling capabilities within a standardized industrial footprint.
