AS16000001

Crystals Overview

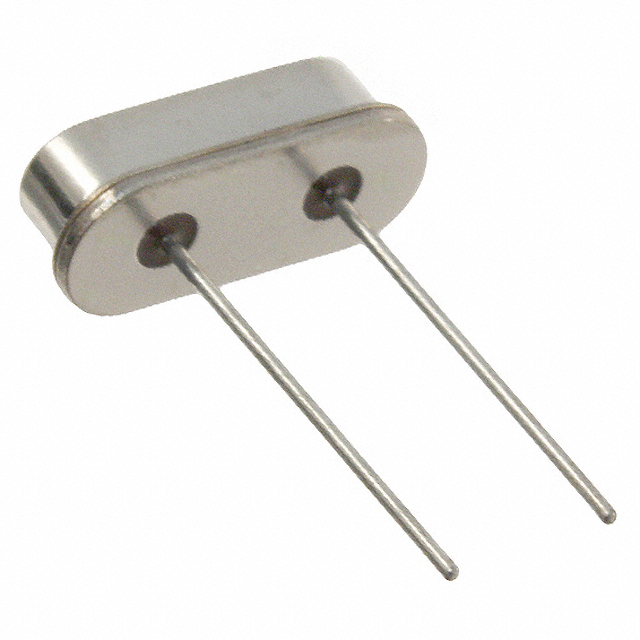

The AS16000001 is a 16 MHz passive quartz crystal resonator manufactured by TXC Corporation. It features a frequency tolerance of ±30ppm and a load capacitance of 12pF. The component utilizes an HC-49/US through-hole package configuration with a drive level specification of 50 Ohms equivalent series resistance. Designed for general timing applications, it operates within standard industrial temperature ranges and complies with RoHS standards.

Crystals Feature Summary

• Provides stable 16 MHz oscillation for digital circuit timing
• Utilizes robust HC-49/US through-hole mounting structure
• Maintains frequency accuracy within ±30ppm tolerance

Crystals Applications

• Microcontroller clock source circuits
• Communication interface timing modules
• General-purpose digital logic systems

Crystals Procurement Notes

Verify the specific datasheet revision to confirm exact electrical parameters and mechanical dimensions. Ensure the HC-49/US package footprint matches the target PCB layout requirements. Confirm compliance with current environmental regulations such as RoHS before final integration into production designs.

Crystals Selection Notes

Select this component when a standard through-hole crystal is required for 16 MHz applications. Consider the HC-49/US form factor for ease of manual assembly or wave soldering processes. Evaluate the ±30ppm tolerance against system clock accuracy requirements to ensure proper operation.

Crystals Part Context

This part belongs to the broad category of passive quartz crystals produced by TXC Corporation. It serves as a fundamental frequency control element in electronic assemblies. The HC-49/US style is a widely recognized industry standard package known for reliability and availability in consumer and industrial electronics.

Crystals Replacement Considerations

Direct substitutes include other manufacturers' HC-49/US crystals rated at 16 MHz with similar load capacitance and tolerance specifications. Verify that alternative parts meet the same mechanical height and pin spacing constraints.
