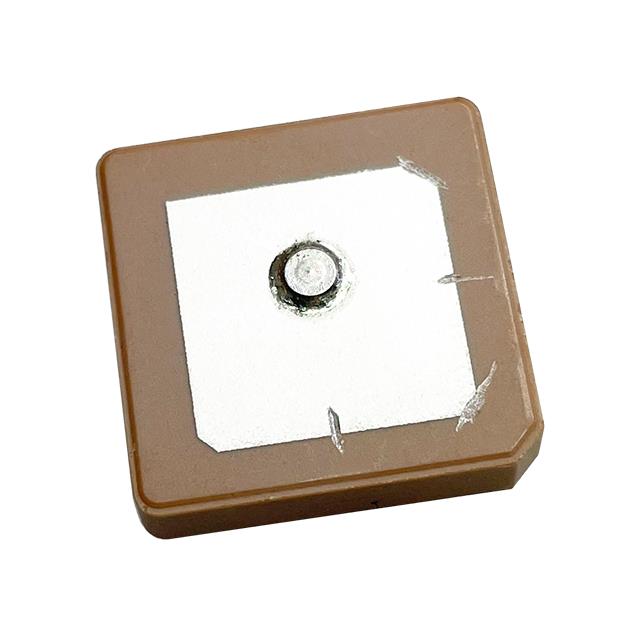

ATPG1590R1840A is listed in the Antennas RF range at ChipApex. The manufacturer field lists YIC. Its product description is CERAMIC GNSS/GPS PATCH ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ATPG1590R1840A
- Description：CERAMIC GNSS/GPS PATCH ANTENNA
- Series：ATPG
- Mfr：YIC
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.59GHz
- Frequency Range：1.575GHz ~ 1.608GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：-
- Return Loss：-10dB
- Gain：-
- Features：-
- Termination：Pin
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.157" (4.00mm)
- Applications：GLONASS, GPS
- Power - Max：-
Antennas RF datasheet and documents for ATPG1590R1840A
Antennas RF Overview
The ATPG1590R1840A is a ceramic patch RF antenna manufactured by YIC, designed for global navigation satellite systems. It operates within the frequency range of 1.575GHz to 1.608GHz, supporting GLONASS and GPS applications. The component features pin termination and adhesive mounting, with a maximum height of 0.157 inches (4.00mm). It exhibits a return loss of -10dB and belongs to the ATPG series under the UHF frequency group.
Antennas RF Feature Summary
- Utilizes ceramic patch construction for compact integration
- Supports RHCP polarization for navigation signals
- Features self-adhesive mounting for secure attachment
Antennas RF Applications
- GLONASS positioning systems
- GPS receiver modules
- GNSS tracking devices
Antennas RF Procurement Notes
Verify the specific part number ATPG1590R1840A against official YIC documentation to ensure compatibility with system requirements. Confirm that the adhesive mounting style and pin termination meet mechanical constraints. Cross-reference the frequency range and return loss specifications with design parameters before procurement to avoid integration issues.
Antennas RF Selection Notes
Select this component when a low-profile ceramic patch antenna is required for GNSS applications. Ensure the design accommodates the 4.00mm height and adhesive installation method. Verify that the single-band operation at 1.575GHz/1.609GHz aligns with the target navigation standards, specifically GLONASS and GPS support.
Antennas RF Part Context
This model belongs to the ATPG series of ceramic patch antennas from YIC. It is categorized under RF and Wireless components, specifically within the UHF frequency group. The part is distinct from other variants in the series by its specific return loss rating and physical dimensions, tailored for embedded navigation solutions.
Antennas RF Replacement Considerations
The ATPG1590R1540A is a related variant within the same ATPG series. While it shares similar frequency ranges and application targets, it differs in return loss specifications (-7dB versus -10dB). Verify electrical performance differences before substitution.
