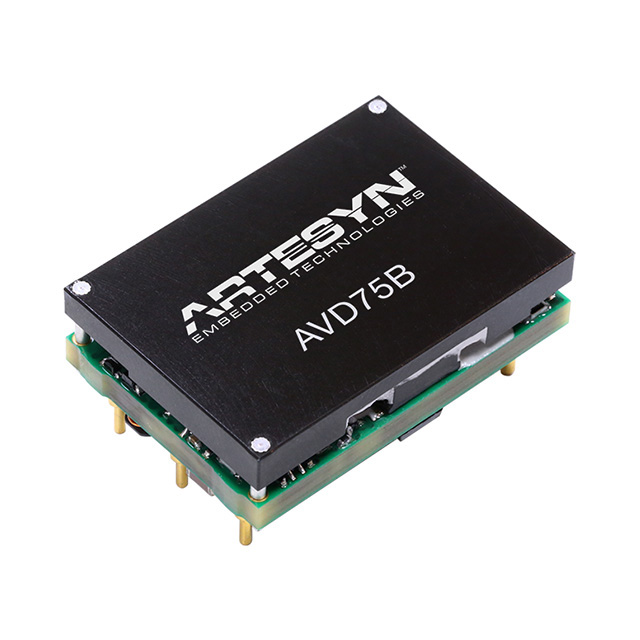

AVD75B-48S12B-6L

AVD75B-48S12B-6L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 12V 75W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AVD75B-48S12B-6L

• Description：DC DC CONVERTER 12V 75W
• Series：AVD75B (75W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6.25A
• Power (Watts)：75 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93.30%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.47" H (33.0mm x 22.9mm x 12.0mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AVD75B-48S12B-6L
