BMLPVMBLTENGP-VP

Antennas RF Overview

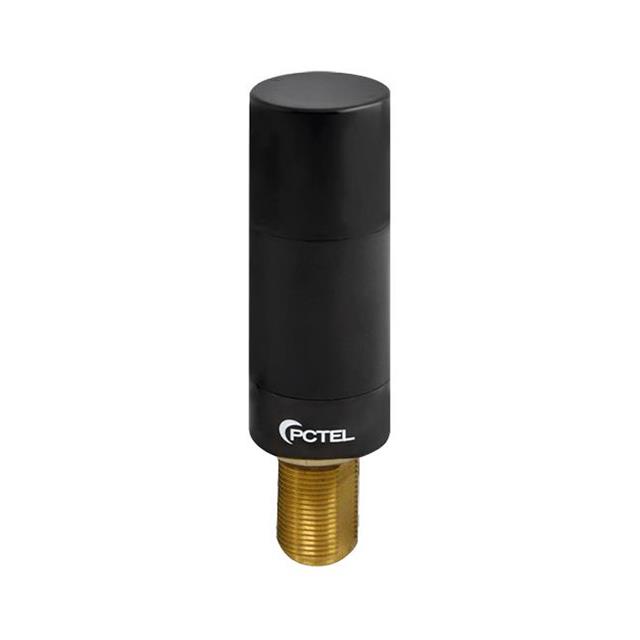

The Amphenol PCTEL BMLPVMBLTENGP-VP is a low-profile, omnidirectional RF antenna designed for cellular and wireless applications. It operates across two frequency bands: 690MHz to 960MHz and 1.71GHz to 2.7GHz, with center frequencies at 825MHz and 2.205GHz. The unit provides a gain of 3dBi in both bands and supports a maximum power of 150W. It features a Type N female connector and achieves a VSWR of less than 2.5:1. The antenna measures 610.00mm in height and includes IP66 ingress protection.

Antennas RF Feature Summary

• Operates without the need for a metallic ground plane
• Low-profile design optimized for mobile and fixed installations
• IP66 rated for environmental protection

Antennas RF Applications

• 4G LTE connectivity
• Mobile communication systems
• Fixed wireless access points

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct configuration. Confirm that the required frequency range aligns with the 690-960MHz and 1.71-2.7GHz specifications. Check lead times as they may vary based on production schedules. Ensure the connector type matches the system interface requirements before finalizing the order.

Antennas RF Selection Notes

Select this model when a ground-plane-independent solution is required for compact installations. It is suitable for environments demanding high durability and weather resistance due to its IP66 rating. Consider the 610mm height constraint for mounting locations. Verify compatibility with 50-ohm systems and ensure the 150W power handling meets operational needs.

Antennas RF Part Context

This component belongs to the MLPV series from Amphenol PCTEL, which specializes in low-profile antennas. The series is engineered for superior pattern coverage in mobile and fixed applications. It targets markets requiring reliable performance in 4G LTE frequencies without traditional grounding constraints.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct replacements or updated series models.
