BOA-LCMGPS-PTNM-4LTE

Antennas RF Overview

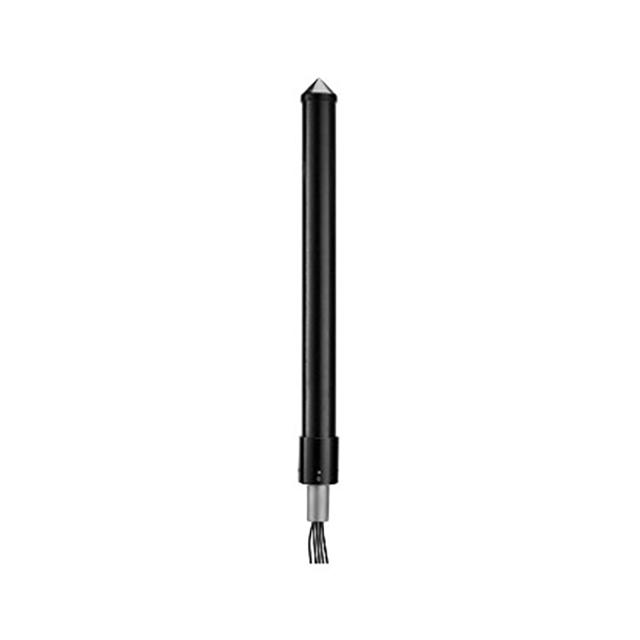

The BOA-LCMGPS-PTNM-4LTE is a multiband LTE cellular omnidirectional antenna manufactured by Amphenol PCTEL. It features an N Male connector and utilizes broadband element technology for superior bandwidth performance across multiple frequency bands including 700 MHz LTE, 800 MHz Cellular/SMR, 900 MHz GSM/ISM, 1700-2200 MHz GSM/PCS, 3G/4G LTE, AWS, 2.4 GHz Wi-Fi, and 2.5-2.7 GHz WiMAX. The unit operates within a temperature range of -40°C to +85°C and employs collar mount installation.

Antennas RF Feature Summary

• Multiband coverage supporting various LTE, cellular, GSM, and Wi-Fi frequencies
• Broadband element technology for enhanced bandwidth performance
• Omnidirectional radiation pattern suitable for base station applications

Antennas RF Applications

• LTE cellular base stations
• Multiband communication infrastructure
• Broadband wireless access points

Antennas RF Procurement Notes

Verify the specific connector gender required for your system integration, as this model specifies an N Male interface. Confirm that the collar mounting style aligns with your structural requirements. Ensure the operating temperature range meets environmental conditions. Cross-reference the part number suffix to distinguish between male and female connector variants within the same product family.

Antennas RF Selection Notes

Select this model when a multiband solution covering LTE, cellular, and Wi-Fi frequencies is required. The N Male connector necessitates compatible cabling or adapter solutions. Consider the collar mount requirement for installation stability. Evaluate the broadband performance needs against specific band coverage requirements to ensure optimal signal reception across all supported frequencies.

Antennas RF Part Context

This component belongs to the BOA-LCMGPS series of LTE cellular omnidirectional antennas from Amphenol PCTEL. The series utilizes broadband element technology to achieve wide bandwidth performance. Variants in this line differ primarily by connector type, such as N Male or N Female configurations, while maintaining similar multiband coverage capabilities and mounting styles.

Antennas RF Replacement Considerations

The BOA-LCMGPS-PTNF-4LTE serves as a direct alternative with identical specifications except for the connector gender, which is N Female instead of N Male. Verify compatibility with existing cable assemblies before substitution.
