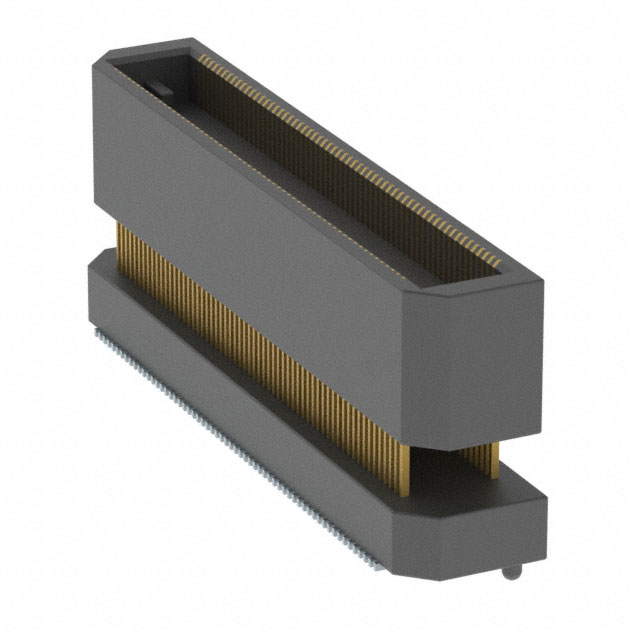

BTH-060-09-L-D-A-K-TR

BTH-060-09-L-D-A-K-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR 120POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for BTH-060-09-L-D-A-K-TR

• Description：CONN HDR 120POS SMD GOLD
• Series：BTH
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR)
• Connector Type：Header, Outer Shroud Contacts
• Number of Positions：120
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Board Guide
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Mated Stacking Heights：14mm
• Height Above Board：0.522" (13.25mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for BTH-060-09-L-D-A-K-TR
