CBD01.07.0100C

Antennas RF Overview

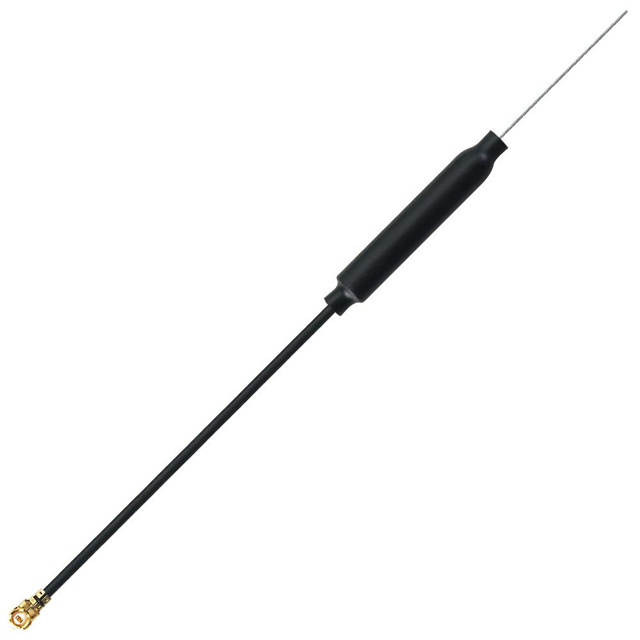

The CBD01.07.0100C is a linearly polarized cable dipole antenna manufactured by Taoglas Limited, designed for operation within the 2.4GHz to 2.5GHz frequency range. It features a straight whip type construction with an I-PEX MHF I (U.FL) connector interface. The component exhibits a Voltage Standing Wave Ratio (VSWR) of 2 and a return loss of -10dB. Physical dimensions include a maximum height of 0.185 inches (4.70mm). The antenna supports ISM and Wi-Fi applications.

Antennas RF Feature Summary

• Linear polarization design for consistent signal transmission
• Integrated I-PEX MHF I connector for compact board attachment
• Straight whip form factor suitable for space-constrained enclosures

Antennas RF Applications

• ISM band devices
• Wi-Fi enabled equipment

Antennas RF Procurement Notes

Verify the specific connector variant against the official datasheet to ensure compatibility with the target PCB footprint. Confirm RoHS compliance status through the manufacturer's documentation prior to integration into regulated environments. Cross-reference the part number suffix to validate the exact cable length and connector type specified in the current production release.

Antennas RF Selection Notes

Select this component when a low-profile, fixed-frequency solution is required for 2.4GHz wireless protocols. The integrated cable and connector simplify assembly compared to discrete elements. Ensure the application environment accommodates the straight whip orientation for optimal radiation pattern performance without physical obstruction.

Antennas RF Part Context

This model belongs to the CBD01.07 series of RF antennas from Taoglas Limited. The series focuses on compact, cost-effective solutions for short-range wireless communications. The CBD01.07.0100C specifically addresses the need for reliable connectivity in industrial and consumer electronics operating in the unlicensed 2.4GHz spectrum.

Antennas RF Replacement Considerations

Consult the official Taoglas substitution guide for verified equivalent models. Generic replacements may differ in connector type or electrical performance characteristics.
