CGGP.35.2.A.08

$8.10

Description：RF ANT 1.575/1.602GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray

SKU:4bf9669afdc7 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CGGP.35.2.A.08 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.575/1.602GHZ CER PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CGGP.35.2.A.08

Description：RF ANT 1.575/1.602GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.602GHz
Frequency Range：1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz
Antenna Type：Ceramic Patch
Number of Bands：2
VSWR：-
Return Loss：-10dB
Gain：4.27dBi, 4.63dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Through Hole
Height (Max)：0.079" (2.00mm)
Applications：Galileo, GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for CGGP.35.2.A.08

CGGP.35.2.A.08

Antennas RF Overview

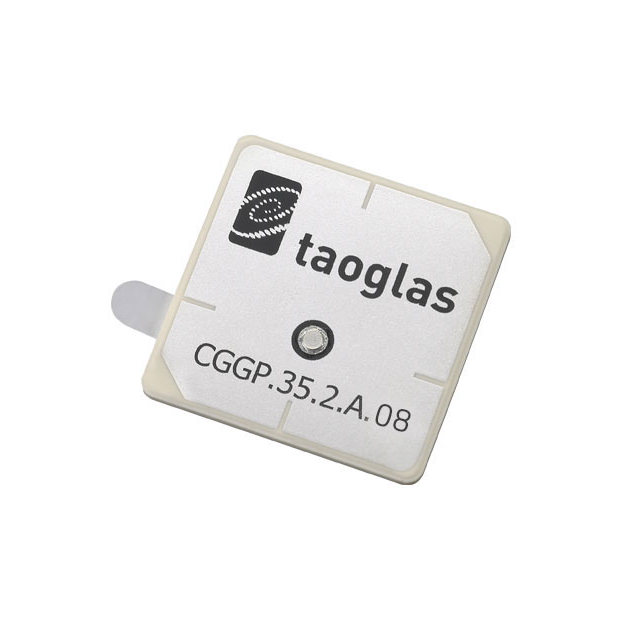

The CGGP.35.2.A.08 is a low-profile ceramic passive patch antenna designed for GNSS applications, supporting GPS, GLONASS, and Galileo bands. It features a compact 35x35x2mm footprint with a 2.4mm pin connector for through-hole mounting. The antenna delivers peak gains of 4.27 dBi in the GPS band and 4.63 dBi in the GLONASS band. It requires a ground plane size of 70 mm x 70 mm for optimal performance.

Antennas RF Feature Summary

Low profile ceramic construction with 2mm thickness
Dual-band support for GPS and GLONASS signals
Through-hole mounting via 2.4mm pin connector

Antennas RF Applications

Vehicle navigation systems
M2M/IoT devices
Embedded GNSS receivers

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm interface type and gain specifications. Ensure the application environment supports the required 70 mm x 70 mm ground plane dimensions for accurate radiation pattern performance. Confirm compatibility with through-hole assembly processes before integration.

Antennas RF Selection Notes

Select this model for applications requiring minimal height constraints due to its 2mm profile. It is suitable for embedded designs where space is limited but stable GNSS reception is critical. Consider the through-hole mounting requirement when designing the PCB layout.

Antennas RF Part Context

This component belongs to Taoglas' series of low-profile embedded GNSS antennas. It utilizes ceramic technology to provide durability and consistent performance across various environmental conditions. The design focuses on integrating seamlessly into compact electronic devices without compromising signal integrity.
