CMQ69273-30NF

Antennas RF Overview

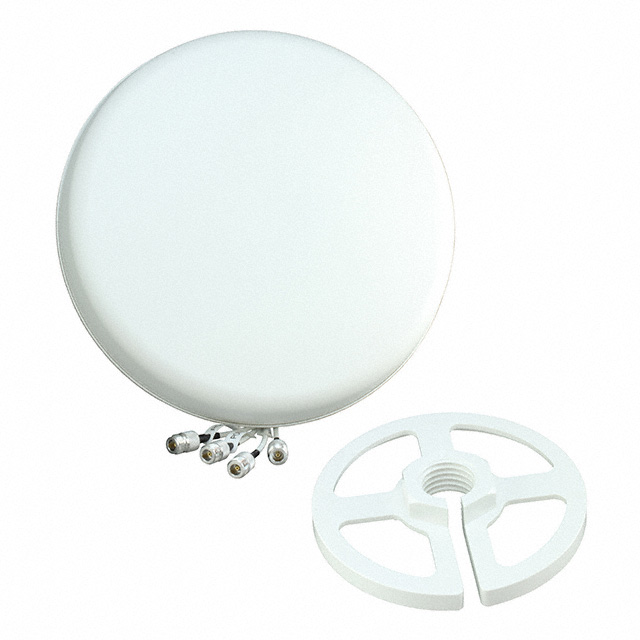

The CMQ69273-30NF is an omnidirectional D-band external antenna manufactured by TE Connectivity. It features a 30 cm cable length and utilizes an N-Female connector interface. The device operates within the D-band frequency range, specifically supporting frequencies around 829 MHz and 2.2 GHz. This component is designed for robust outdoor or wide-area coverage applications requiring reliable signal transmission in designated wireless communication bands.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for uniform signal distribution
• Dedicated D-band operation optimized for specific frequency ranges
• Integrated 30 cm cable assembly with N-Female connector

Antennas RF Applications

• Outdoor wireless communication base stations
• Wide area network (WAN) coverage systems
• Industrial IoT connectivity nodes

Antennas RF Procurement Notes

Verify the exact frequency specifications against the latest official datasheet to ensure compatibility with your system's operational band. Confirm that the N-Female connector type matches your existing cabling infrastructure. Check for any recent Product Change Notifications (PCN) regarding manufacturing updates or material changes that may affect performance characteristics.

Antennas RF Selection Notes

Select this model when an omnidirectional D-band antenna is required for external mounting. Ensure the 30 cm cable length meets the distance requirements between the radio unit and the antenna location. Verify that the N-Female interface is compatible with the connected feed line. Consider environmental ratings if the installation site exposes the antenna to harsh weather conditions.

Antennas RF Part Context

This part belongs to the TE Connectivity Laird Antennas portfolio, which specializes in RF solutions for various wireless protocols. The CMQ series typically addresses cellular and IoT connectivity needs. As an external antenna, it complements indoor or compact solutions like the CMS69273 series by providing broader coverage capabilities for outdoor deployments.

Antennas RF Replacement Considerations

Consult official TE Connectivity documentation for direct substitutes. No verified public substitute part numbers are currently available in the provided source data.
