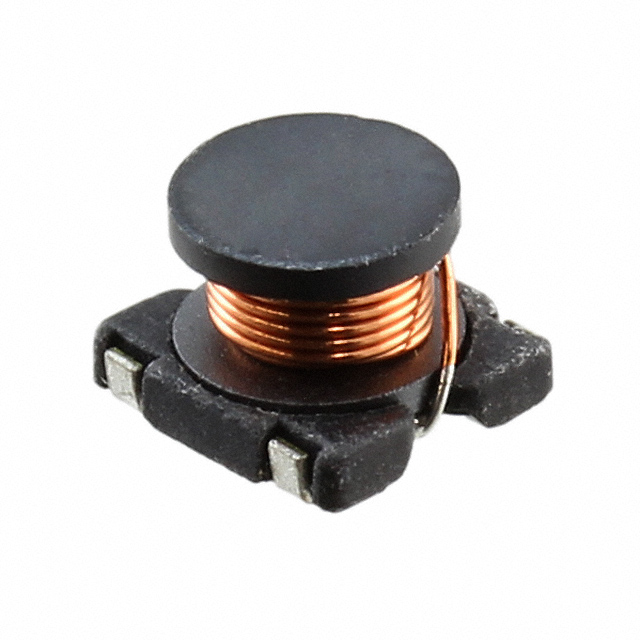

CR32NP-3R3MC

CR32NP-3R3MC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is FIXED IND 3.3UH 1.18A 137MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CR32NP-3R3MC

• Description：FIXED IND 3.3UH 1.18A 137MOHM SM
• Series：CR32
• Mfr：Sumida America Components Inc.
• Package：Tape & Reel (TR)
• Type：Drum Core, Wirewound
• Material - Core：Ferrite
• Inductance：3.3 µH
• Tolerance：±20%
• Current Rating (Amps)：1.18 A
• Current - Saturation (Isat)：-
• Shielding：Unshielded
• DC Resistance (DCR)：137mOhm Max
• Q @ Freq：-
• Frequency - Self Resonant：-
• Ratings：-
• Operating Temperature：-40°C ~ 100°C
• Inductance Frequency - Test：7.96 MHz
• Mounting Type：Surface Mount
• Package / Case：Nonstandard
• Supplier Device Package：-
• Size / Dimension：0.150" L x 0.138" W (3.80mm x 3.50mm)
• Height - Seated (Max)：0.118" (3.00mm)
• Features：-

Fixed Inductors datasheet and documents for CR32NP-3R3MC
