DASUTCCR500NF

Antennas RF Overview

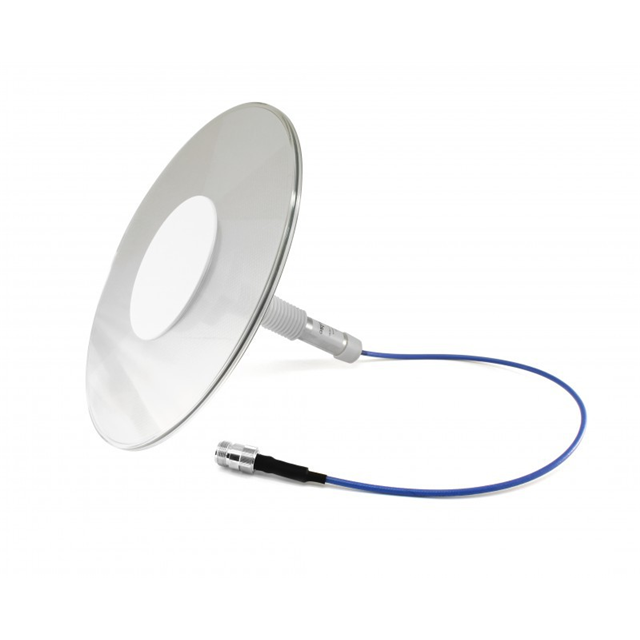

The DASUTCCR500NF is a ceiling-mount omni-directional antenna manufactured by Pulse Electronics. It operates within the frequency range of 608-960 MHz, 1695-2200 MHz, and 2300-2700 MHz. The unit includes an integrated reflector to optimize signal radiation patterns for indoor distribution applications.

Antennas RF Feature Summary

• Ceiling-mount installation design
• Omni-directional radiation pattern
• Integrated reflector structure

Antennas RF Applications

• Distributed Antenna Systems (DAS)
• In-building wireless coverage
• Telecommunications infrastructure

Antennas RF Procurement Notes

Verify the specific datasheet version W712 on the official Pulse Electronics website to confirm current technical specifications. Ensure compatibility with existing mounting hardware and cabling requirements for the intended installation environment before procurement.

Antennas RF Selection Notes

Select this model when multi-band support across 608-960 MHz, 1695-2200 MHz, and 2300-2700 MHz is required for indoor environments. The ceiling-mount form factor and built-in reflector are key considerations for spatial constraints and signal uniformity in distributed systems.

Antennas RF Part Context

This component belongs to the PIMinator series of low Passive Intermodulation (PIM) antennas designed for demanding 2G, 3G, 4G (LTE), and WiFi bands. It addresses the need for high-reliability in-building solutions that minimize interference while maintaining broad frequency coverage.

Antennas RF Replacement Considerations

Consult official Pulse Electronics documentation for direct substitute part numbers. Verify frequency band overlap and mechanical mounting dimensions to ensure functional equivalence in existing installations.
