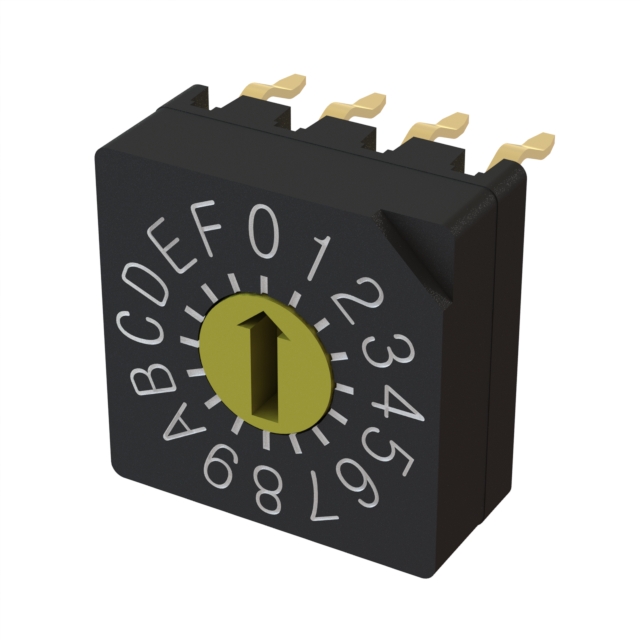

Dip Switches DRS 3116 product image

DRS 3116

$2.21

Description：SWITCH ROTARY HEXADECIMAL INV
Series：DRS
Mfr：Knitter-Switch
Package：Tube

SKU:b2aa23ed505f Category: DIP Switches Brand: Knitter-Switch

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DRS 3116 is listed in the Dip Switches range at ChipApex. The manufacturer field lists Knitter-Switch. Its product description is SWITCH ROTARY HEXADECIMAL INV. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for DRS 3116

Description：SWITCH ROTARY HEXADECIMAL INV
Series：DRS
Mfr：Knitter-Switch
Package：Tube
Circuit：Hexadecimal Complement
Number of Positions：16
Current Rating (Amps)：30mA
Voltage Rating：15VDC
Actuator Type：Rotary for Tool
Actuator Level：Flush, Recessed
Contact Material：Phosphor Bronze
Contact Finish：Gold
Height Above Board：0.189" (4.80mm)
Mounting Type：Through Hole
Termination Style：PC Pin
Pitch：0.100" (2.54mm), Full
Washable：Yes
Features：-
Operating Temperature：-25°C ~ 70°C

Dip Switches datasheet and documents for DRS 3116
