F1150AA03

Power Line Filter Modules Overview

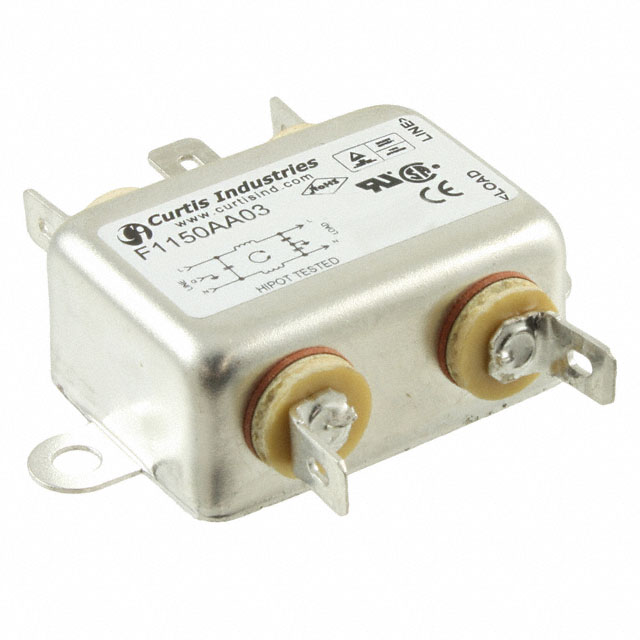

The Curtis Industries F1150AA03 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration to suppress electromagnetic interference in power lines. The component supports a rated current of 3 A and operates at voltages up to 250 VAC. It is engineered for 50/60 Hz frequency applications and utilizes quick connect termination style for circuit integration.

Power Line Filter Modules Feature Summary

• Provides dual-stage filtering capability for enhanced noise suppression
• Designed for direct chassis mounting installation
• Utilizes quick connect termination for simplified wiring

Power Line Filter Modules Applications

• General purpose electronic equipment requiring EMI/RFI suppression
• Power supply input stages for sensitive instrumentation
• Industrial control systems needing single-phase line filtering

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision before procurement, as Curtis Industries may update internal specifications without changing the base part number. Confirm that the quick connect terminal dimensions match your PCB or wire harness requirements. Ensure the chassis mounting holes align with your enclosure design constraints prior to ordering.

Power Line Filter Modules Selection Notes

Select this model when a compact, single-phase solution is required for moderate current loads up to 3 A. The two-stage architecture offers superior attenuation compared to single-stage alternatives. Ensure the operating environment does not exceed the rated voltage and temperature limits specified in the official documentation.

Power Line Filter Modules Part Context

This component belongs to the F1150 series of power line filters from Curtis Industries. The series provides various configurations for single-phase applications. The F1150AA03 specifically denotes the 3 A rating and two-stage filtering variant within this product family.

Power Line Filter Modules Replacement Considerations

The F1400AA03 is a similar Curtis Industries filter but features a different stage configuration. Verify if the additional filtering stages are necessary or if they introduce unwanted impedance changes for your specific application.
