F1199BB03

Power Line Filter Modules Overview

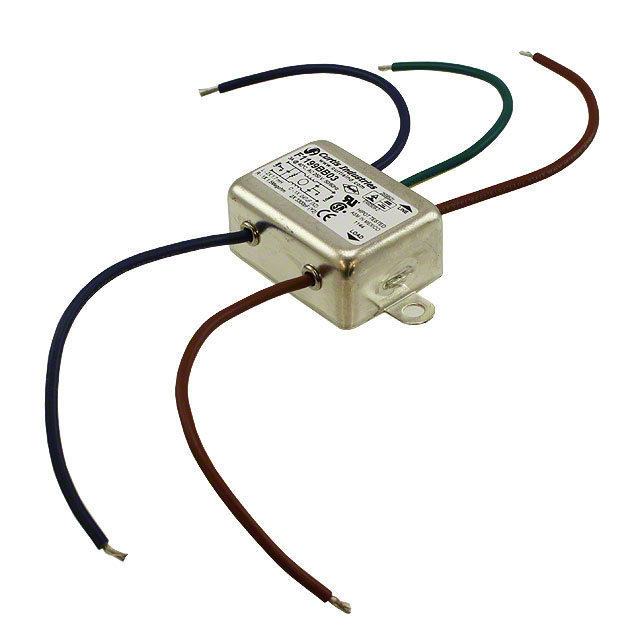

The Curtis Industries F1199BB03 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current rating of 3A at 50/60Hz frequencies. The unit features a single-stage configuration with wire lead terminations. Key electrical parameters include a leakage current range of 0.25 to 0.45 mA. The component holds CE, CSA, TUV, and UR approval agencies certifications.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount construction with wire leads
• Certified for international safety standards

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment EMI reduction
• Electronic device noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific termination style matches your wiring requirements, as this model uses wire leads rather than quick-connect terminals found in other series variants. Confirm that the chassis mounting dimensions align with your enclosure design before finalizing the order. Ensure the 3A current rating meets the operational load of the target circuit to prevent performance degradation or failure under peak conditions.

Power Line Filter Modules Selection Notes

Select this component when a single-stage filter solution is sufficient for the required attenuation levels. The wire lead termination style requires direct soldering or crimping, which differs from plug-in alternatives. Consider the physical chassis mounting constraints and ensure adequate clearance for heat dissipation during continuous operation within the specified voltage and frequency parameters.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1199 series of power line filter modules. The series offers various configurations including different current ratings and termination styles. The F1199BB03 specifically denotes the 3A variant with wire leads, distinguishing it from models like the F1399AA02 which utilizes quick-connect terminals and a two-stage design.

Power Line Filter Modules Replacement Considerations

TE Connectivity Corcom Filters 6609031-3 is listed as a similar substitute part. Schaffner EMC Inc. FN2010-3-07 is also identified as an equivalent option providing comparable 3A capacity.
