F1842CCD600

Diode Arrays Overview

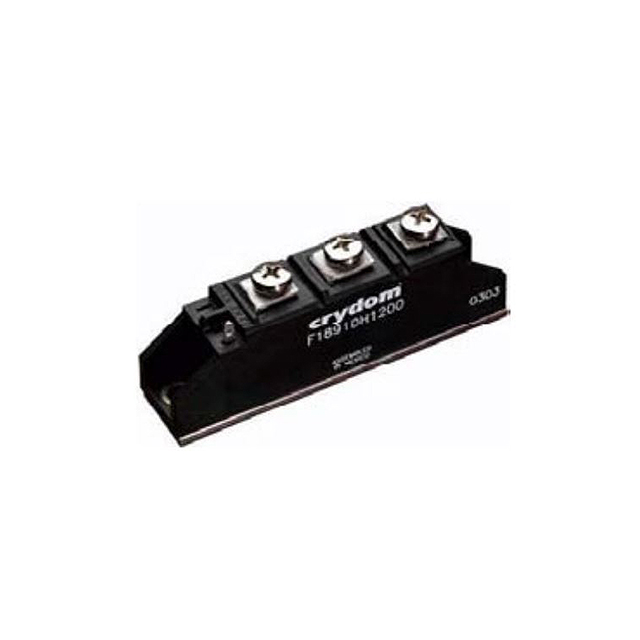

The F1842CCD600 is a discrete semiconductor module manufactured by Sensata-Crydom under the F18 series. It is classified as an SCR-Diode Module utilizing Silicon technology. The component features a reverse voltage rating of 600 V and a forward voltage drop of 1.4 V. Designed for screw mount installation, it operates within a temperature range of -40°C to +125°C. The unit weighs approximately 135 g and is packaged individually.

Diode Arrays Feature Summary

• Integrates silicon-based SCR and diode structures in a single module
• Provides high thermal stability across extended operating temperatures
• Supports secure mechanical attachment via screw mounting style

Diode Arrays Applications

• Industrial power switching systems
• Solid state power control circuits
• High current rectification applications

Diode Arrays Procurement Notes

Verify the specific datasheet version before integration, as manufacturing specifications may evolve. Confirm that the 600 V reverse voltage and 1.4 V forward voltage parameters align with the target circuit requirements. Ensure the screw mount interface matches the available heatsink or chassis infrastructure. Check for any recent product change notifications regarding material composition or pinout adjustments.

Diode Arrays Selection Notes

Select this module when a combined SCR and diode configuration is required for phase control or rectification. The F18 series offers a standardized footprint for easy replacement. Consider the 125°C maximum junction temperature for high-heat environments. Verify that the 600 V blocking capability exceeds the peak inverse voltage of the application load.

Diode Arrays Part Context

This component belongs to the F18 series of solid-state power switching modules from Sensata-Crydom. The series is designed for robust industrial applications requiring reliable power control. Similar parts in the lineup include variations with different voltage ratings or current capacities, allowing for scalable system design while maintaining consistent mounting and electrical characteristics.

Diode Arrays Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate Vishay General Semiconductor equivalents based on matching voltage, current, and package dimensions if direct substitution is necessary.
