F3480T032

Power Line Filter Modules Overview

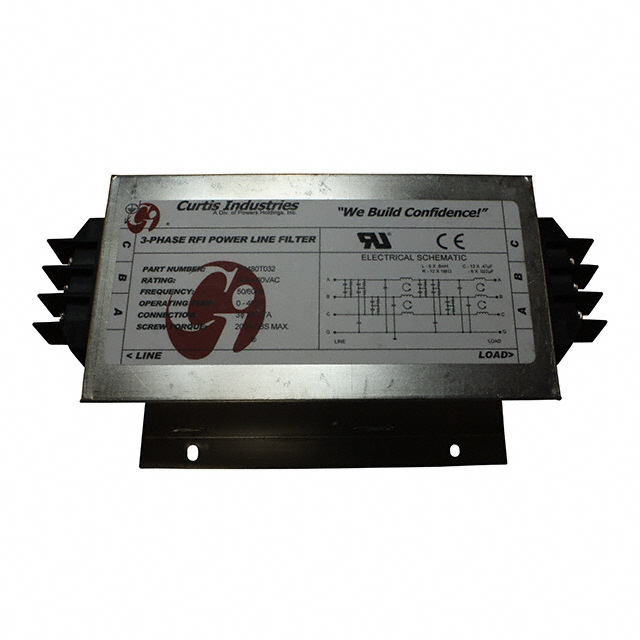

The Curtis Industries F3480T032 is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It features a two-stage terminal block configuration and operates at a voltage rating of 480VAC with a current rating of 32A at 50/60Hz. The component has a leakage current specification of 7mA.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes a two-stage filtering architecture for enhanced noise reduction
• Designed for secure chassis mounting installation

Power Line Filter Modules Applications

• Industrial motor drive systems
• Three-phase power distribution networks
• Heavy machinery control panels

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and terminal block orientation before integration. Ensure the input power supply matches the 480VAC rating and that the load current does not exceed 32A. Confirm chassis mounting hole patterns align with your enclosure design to avoid compatibility issues during assembly.

Power Line Filter Modules Selection Notes

Select this model when three-phase EMI suppression is required for high-current industrial loads. The 32A rating suits moderate-power applications, while the 480VAC rating fits standard industrial voltages. Consider the chassis mount form factor if panel space allows for direct screw-down installation rather than DIN rail or PCB mounting alternatives.

Power Line Filter Modules Part Context

This component belongs to the F3480 series of power line filters from Curtis Industries. The series offers various current and voltage ratings tailored for different industrial power requirements. The F3480T032 specifically addresses the needs of three-phase delta configurations requiring robust noise filtration in demanding electrical environments.

Power Line Filter Modules Replacement Considerations

Cross-reference with other Curtis F3480 series variants for different current ratings. Verify that substitute components maintain the same three-phase delta topology and chassis mounting style to ensure physical and electrical compatibility without redesigning the enclosure.
