F8845EGV

Overview

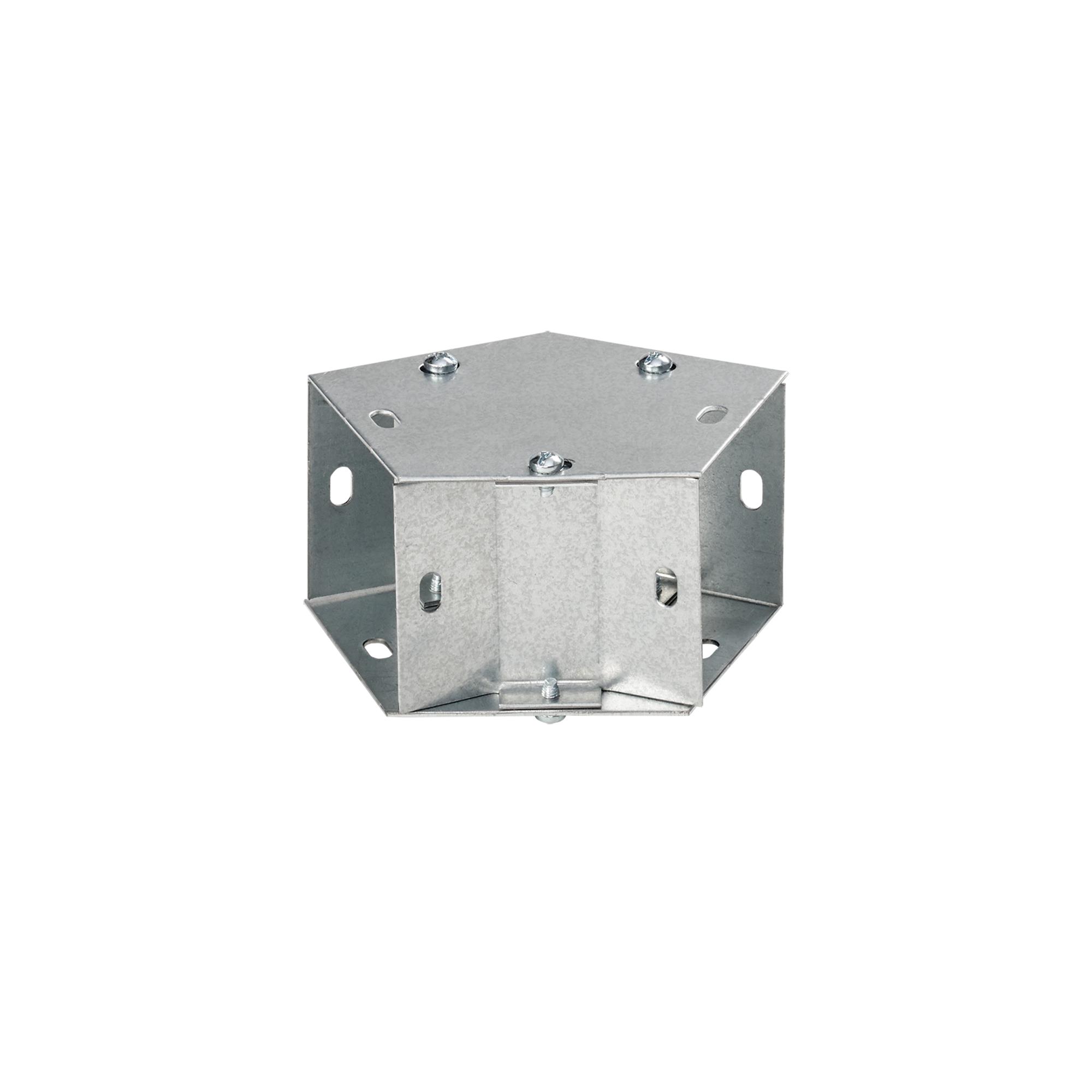

The Hoffman Enclosures F8845EGV is a galvanized steel 45-degree elbow wireway component designed for indoor electrical cable management. It features an 8-inch by 8-inch cross-section and is constructed from 16/14 gauge steel with a galvanized finish. The unit supports continuous runs with 45-degree turns and allows any side to be removed while retaining the lay-in feature. It meets UL 870, CUL, and CSA C22.2 standards and holds NEMA 1 ratings.

Feature Summary

• Galvanized steel construction for corrosion resistance
• Lay-in design allowing easy cable installation
• Any-side opening capability for flexible routing

Applications

• Indoor electrical cable management systems
• Continuous wireway runs requiring 45-degree turns
• Industrial control panel wiring infrastructure

Procurement Notes

Verify that the application environment is strictly indoor, as this component carries only a NEMA 1 rating and lacks protection against dust or water ingress required for outdoor or harsh industrial settings. Confirm that the 8x8 inch dimensions align with the existing wireway system layout. Ensure compatibility with standard 16/14 gauge steel wireway accessories for secure assembly.

Selection Notes

Select this model when a 45-degree directional change is required in an indoor wireway run. The galvanized finish provides basic environmental protection suitable for controlled indoor spaces. Verify that the open-end design accommodates the specific cable bundle size and that the lay-in functionality meets maintenance access requirements without compromising structural integrity.

Part Context

This component belongs to the Hoffman wireway family, specifically engineered for structured cable routing within electrical enclosures and panels. It serves as a transition piece to navigate corners while maintaining the lay-in accessibility of the main wireway trunking. The product is part of a broader range of conduit and wireway fittings designed for organized power distribution.

Replacement Considerations

Cross-reference with other 8x8 inch galvanized steel 45-degree elbows if sourcing from alternative manufacturers. Ensure substitute parts meet identical UL 870 and CSA C22.2 safety certifications. Verify that the gauge thickness and finish type match to maintain consistent mechanical strength and corrosion resistance in the installed system.
