FIN1700EG.027.M

Power Line Filter Modules Overview

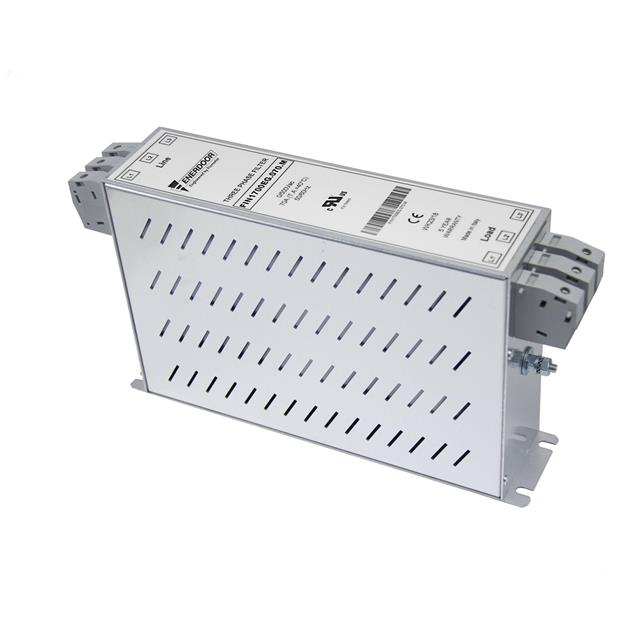

The Enerdoor FIN1700EG.027.M is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It features a rated current of 27 A and operates at frequencies of 50/60 Hz with a nominal voltage rating of 500 Vac. The component utilizes a two-stage architecture to provide high attenuation for both differential and common mode interference. It employs terminal block connections and exhibits a leakage current range between 3 and 15 mA. The unit is RoHS3 compliant and constructed for robust electromagnetic compatibility in power line environments.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• High attenuation performance for differential and common mode signals
• Terminal block connection interface for secure installation
• RoHS3 compliance ensuring restricted substance adherence

Power Line Filter Modules Applications

• Industrial automation systems requiring EMI suppression
• Three-phase power distribution networks
• Machinery with sensitive electronic control components
• Electromagnetic compatibility compliance testing setups

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Enerdoor documentation to confirm terminal configuration and mounting style. Ensure the application voltage does not exceed the 500 Vac rating. Confirm that the required attenuation levels meet the specific EMC standards applicable to your equipment. Cross-reference the leakage current specifications with safety regulations for the intended installation environment.

Power Line Filter Modules Selection Notes

Select this model when a three-phase Delta configuration is required for 27 A loads. Consider the two-stage design if standard single-stage filters fail to meet strict emission limits. Evaluate the terminal block interface against available panel space and wiring constraints. Verify that the low leakage current characteristics align with personnel safety requirements in the target deployment area.

Power Line Filter Modules Part Context

This component belongs to the Enerdoor FIN1700EG series, which offers rated currents ranging from 7 to 230 A. The 'G' designation typically indicates specific terminal or mounting variations within the product family. These filters are engineered for high-performance noise reduction in demanding industrial settings, supporting various three-phase power configurations.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Enerdoor technical support for direct equivalents or cross-reference based on identical electrical ratings and physical dimensions.
