FIN1900EG.055.M

Power Line Filter Modules Overview

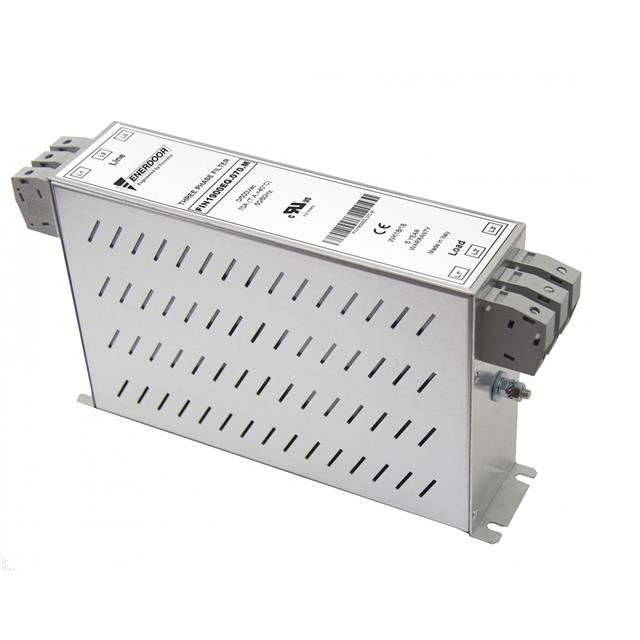

The Enerdoor FIN1900EG.055.M is a three-phase (Delta) EMC/EMI line filter module designed for industrial power applications. It features a current rating of 55 A and operates at frequencies of 50/60 Hz with a voltage rating up to 500V or 600V depending on specific configuration variants. The unit utilizes a two-stage filtering architecture to suppress electromagnetic interference, employing terminal block connections for secure integration into control panels. This component supports compliance with international standards including UL508A SCCR requirements.

Power Line Filter Modules Feature Summary

• Two-stage EMI/RFI filtering architecture for enhanced noise suppression
• Terminal block connection interface for panel mounting
• Compliance with UL508A short-circuit current rating requirements

Power Line Filter Modules Applications

• Industrial automation machinery power lines
• Control panel integration for motor protection
• EMC compliance for European CE marking requirements

Power Line Filter Modules Procurement Notes

Verify the exact voltage rating (500V vs 600V) and phase configuration against the specific datasheet revision, as suffixes may indicate variations in terminal type or enclosure. Confirm UL508A SCCR ratings are required for your specific panel design. Ensure compatibility with Delta three-phase systems before procurement.

Power Line Filter Modules Selection Notes

Select this model for applications requiring robust two-stage filtering in three-phase Delta configurations. Consider the 55 A current capacity and terminal block interface when designing panel layouts. Verify that the specific variant matches the required voltage class and regulatory certifications for the target market.

Power Line Filter Modules Part Context

Enerdoor specializes in electromagnetic compatibility solutions, including filters and harmonic mitigation devices. The FIN1900 series represents their line filter modules designed for industrial environments. The company emphasizes compliance with IEC, EN, and UL standards, offering solutions that address both emission and immunity issues in automated systems.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers such as FIN1900.055.M or FIN1900E.055.M for potential equivalents. Verify that any substitute maintains the same three-phase Delta configuration, 55 A rating, and two-stage filtering topology to ensure functional equivalence.
