FMAC-0956-H412I

Power Line Filter Modules Overview

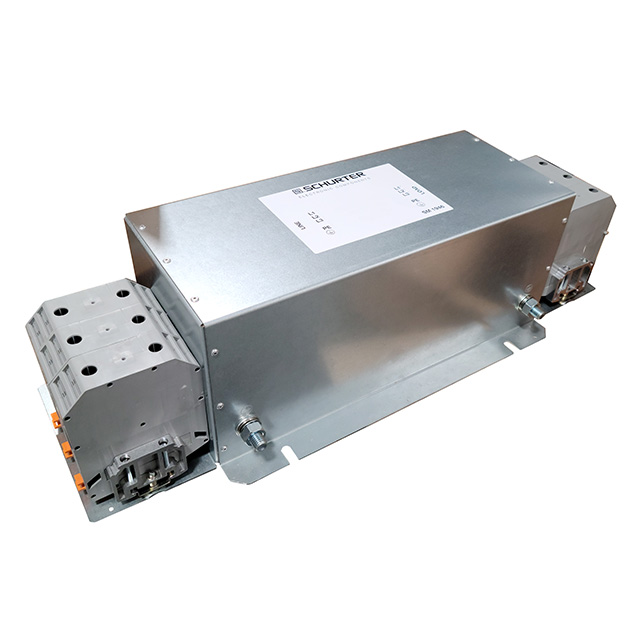

The FMAC-0956-H412I is a three-phase (Delta) EMC/EMI line filter module manufactured by SCHURTER Inc. It features a single-stage design with a rated current of 340 A and voltage ratings of 480 VAC and 520 VAC at 50/60 Hz. The unit utilizes terminal block connections for installation.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Designed for chassis mounting applications
• Supports industrial environments requiring robust filtering

Power Line Filter Modules Applications

• Industrial power distribution systems
• Photovoltaic system integration
• Protection against mains interference voltages

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAC-0956-H412I against official SCHURTER documentation to confirm compatibility with 520 VAC Delta configurations. Ensure that the 340 A current rating aligns with the load requirements of the intended application before procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is required for three-phase Delta networks operating at 480 or 520 VAC. Confirm that the terminal block interface meets the wiring constraints of the assembly. Validate that the 340 A continuous current capacity satisfies the peak operational demands of the connected equipment.

Power Line Filter Modules Part Context

This component belongs to the FMAC series of power line filters from SCHURTER, which are engineered for global acceptance in both 480 VAC and 520 VAC systems. The series targets industrial and renewable energy sectors, offering standardized filtering solutions for three-phase AC applications.

Power Line Filter Modules Replacement Considerations

Cross-reference with other FMAC series variants such as FMAC-0956-H310 or FMAC-0956-H312I if different current ratings or voltage specifications are needed. Verify that any substitute maintains the three-phase Delta topology and terminal block mounting style.
