FMAC-3RYB-2010

Power Line Filter Modules Overview

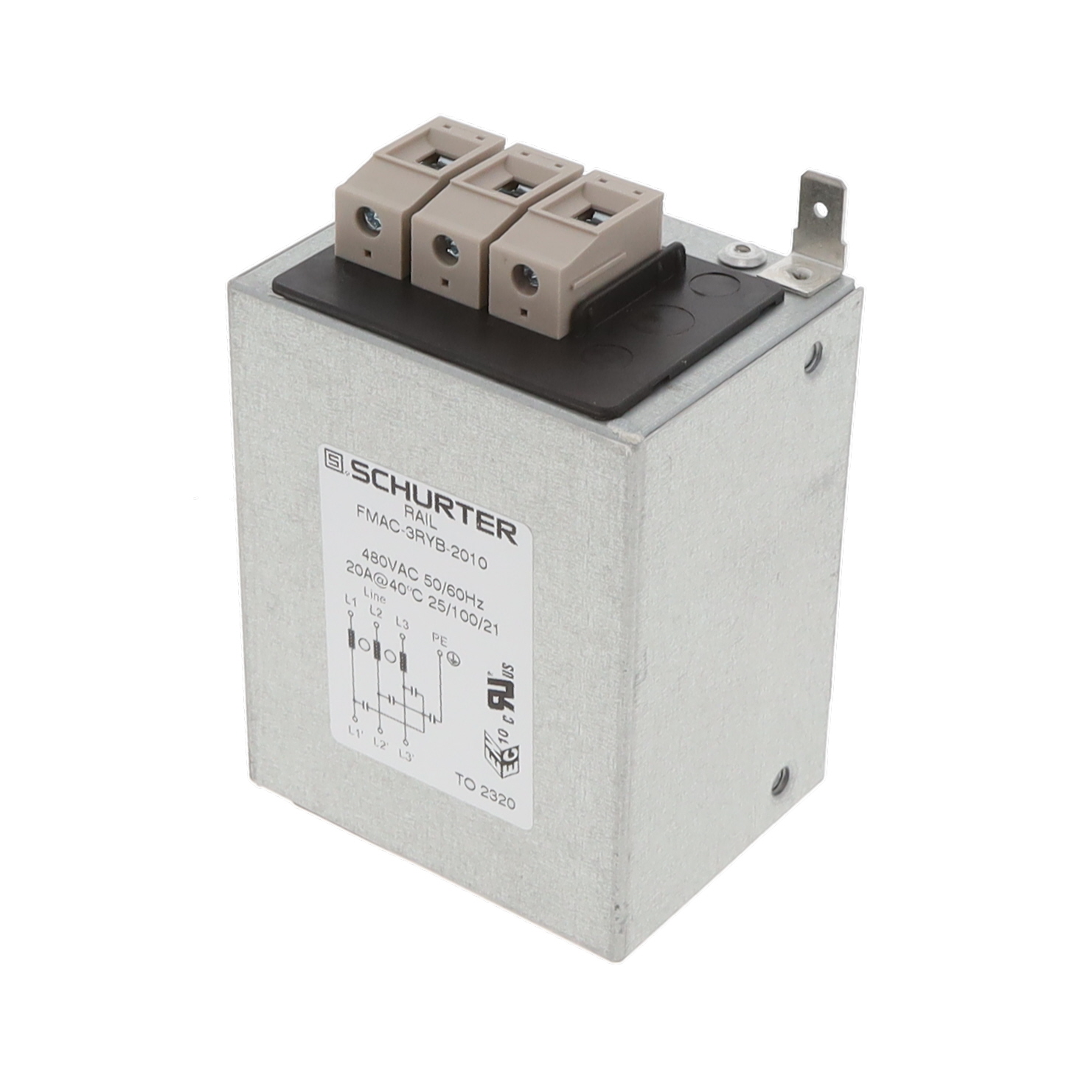

The Schurter FMAC-3RYB-2010 is a three-phase RFI filter rated for 20 A and 480 V AC. It operates at 50 Hz and 60 Hz frequencies with DIN rail mounting and screw terminals. Key electrical parameters include 100 nF capacitance, 220 μH inductance, and 4.1 mΩ resistance. The unit measures 102 mm in length, 48 mm in height, and 61 mm in depth. It functions within a temperature range of -25°C to 100°C, features 2 mA leakage current, and has a power loss of 4.9 W.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed for secure DIN rail installation using screw terminal connections
• Constructed to withstand operating temperatures from -25°C to 100°C

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Commercial building electrical distribution systems
• Three-phase motor drive protection circuits

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAC-3RYB-2010 against official Schurter documentation to confirm compatibility with your system requirements. Ensure that the voltage rating of 480 V AC and current capacity of 20 A match your application's electrical specifications. Confirm that the DIN rail mounting style and screw terminal configuration align with your enclosure design constraints before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when a three-phase RFI filter is required for 480 V AC systems operating at 50 or 60 Hz. The 20 A current rating suits moderate load applications. Consider the DIN rail mounting requirement and physical dimensions of 102 x 48 x 61 mm for spatial planning. Verify that the 2 mA leakage current meets safety standards for your specific installation environment.

Power Line Filter Modules Part Context

This model belongs to the Schurter FMAC RAIL series, which specializes in DIN rail mounted filters. The series provides standardized solutions for industrial electromagnetic compatibility needs. The FMAC-3RYB-2010 variant specifically addresses three-phase applications requiring robust filtering capabilities within compact enclosures suitable for standard industrial control panels.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for confirmed substitute part numbers. Cross-reference technical specifications including current rating, voltage, and mounting style when evaluating alternatives.
