FMAD-T4QT-1660.EU

Power Line Filter Modules Overview

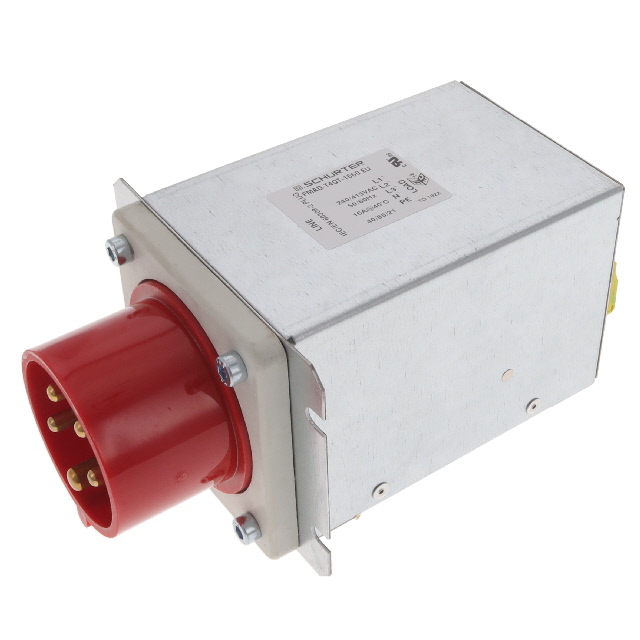

The FMAD-T4QT-1660.EU is a three-phase single-stage power line filter manufactured by Schurter. It supports rated voltages of 277 VAC and 480 VAC with a continuous current rating of 16 A. The unit operates at frequencies of 50 Hz and 60 Hz and features screw clamp termination for secure connections. Designed for chassis mounting, it includes an integrated CEE connector and maintains a leakage current of 10 mA. The component weighs 1.185 kg and complies with UL, SEMKO, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression through a single-stage filtering architecture
• Integrates a CEE connector for standardized three-phase power interface
• Utilizes screw clamp termination to ensure robust electrical connections
• Engineered for chassis mounting in industrial power conditioning environments

Power Line Filter Modules Applications

• Industrial machinery requiring EMI suppression
• Three-phase power distribution systems
• Equipment compliant with IEC/EN safety standards
• Chassis-mounted power line conditioning units

Power Line Filter Modules Procurement Notes

Verify the complete part number including the suffix against official Schurter documentation to confirm specific configuration details. Ensure compatibility with 277 VAC or 480 VAC supply networks. Confirm that chassis mounting provisions align with installation requirements. Cross-reference certification marks such as UL and SEMKO with local regulatory mandates before deployment.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction in three-phase circuits. Evaluate the 16 A current capacity against peak load demands. Consider the physical dimensions and weight for enclosure space planning. Verify that the screw clamp termination method matches available wiring infrastructure and torque specifications.

Power Line Filter Modules Part Context

This model belongs to Schurter's power line filter portfolio, specifically designed for general-purpose electromagnetic interference suppression. It addresses noise issues in three-phase systems where compact integration and certified compliance are required. The design prioritizes reliable performance in industrial settings without requiring complex multi-stage configurations.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalents. Generic cross-references may not match the integrated CEE connector or specific voltage ratings. Ensure any substitute maintains the same single-stage topology and 16 A current handling capability.

Power Line Filter Modules FAQ

What is the maximum leakage current for this filter?

The specified leakage current is 10 mA.

Does this unit include a built-in connector?

Yes, the FMAD-T4QT-1660.EU integrates a CEE connector for three-phase connection.

Is this filter suitable for 50 Hz and 60 Hz operations?

Yes, the component is rated for operation at both 50 Hz and 60 Hz frequencies.
