FMAM4061F

RF Amplifiers Overview

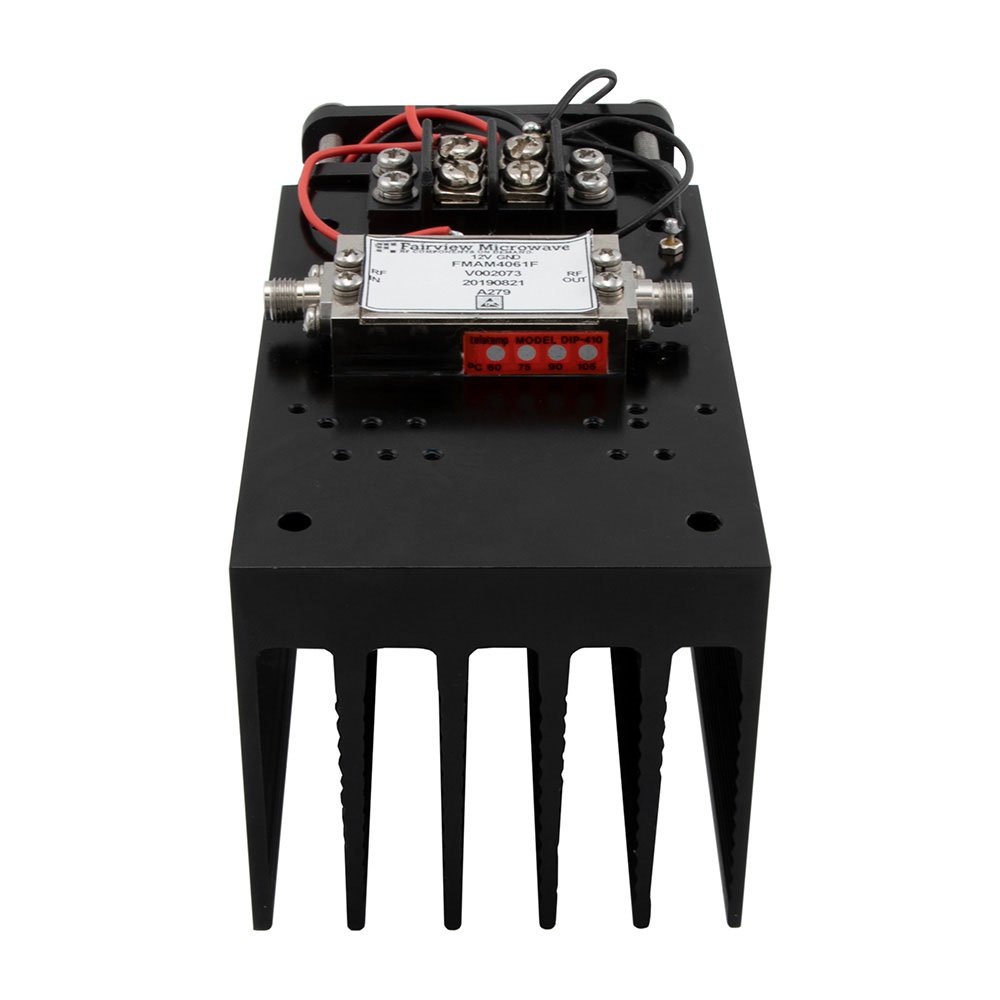

The FMAM4061F is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 6 GHz to 18 GHz frequency range. This component delivers a P1dB output power of 27 dBm and requires an operating supply current of 800 mA. It features SMA connectors for input and output interfaces and includes an integrated heatsink for thermal management. The unit is classified as a power amplifier within the wireless and RF integrated circuits category.

RF Amplifiers Feature Summary

• Integrated heatsink design for enhanced thermal dissipation during continuous operation
• SMA connector interface providing standardized RF connectivity
• Medium power amplification capability optimized for high-frequency applications

RF Amplifiers Applications

• Radar systems requiring stable amplification in the 6-18 GHz band
• Electronic warfare equipment utilizing wideband signal processing
• Test and measurement instrumentation for RF characterization

RF Amplifiers Procurement Notes

Verify the specific datasheet version before integration, as Fairview Microwave product specifications may undergo revisions. Confirm that the 800 mA supply current requirement aligns with your system's power budget. Ensure proper thermal interface materials are selected to utilize the integrated heatsink effectively. Validate SMA connector compatibility with existing cable assemblies to maintain signal integrity at frequencies up to 18 GHz.

RF Amplifiers Selection Notes

Select this model when a fixed 27 dBm P1dB output is required across the 6-18 GHz spectrum. Compare against the FMAM4062F if higher 1 Watt output power is necessary, noting its increased 1.8 A current draw. Consider the FMAM4063F only if the application is strictly limited to the narrower 8-12.4 GHz range. Evaluate thermal constraints carefully due to the significant power dissipation inherent in medium power amplifiers.

RF Amplifiers Part Context

This component belongs to Fairview Microwave's line of modular RF power amplifiers. These units are engineered for robust performance in demanding electromagnetic environments. The series typically utilizes LDMOS or similar technologies to achieve reliable gain and linearity. Each module integrates matching networks and protection circuits within a shielded enclosure.

RF Amplifiers Replacement Considerations

Public documentation does not list confirmed direct substitute part numbers for the FMAM4061F. Engineers should evaluate the FMAM4062F for higher power needs or the FMAM4063F for narrower bandwidth requirements. Cross-referencing pinouts and thermal pads is essential when substituting any Fairview Microwave amplifier module.
