FMBC-0931-1610

Power Line Filter Modules Overview

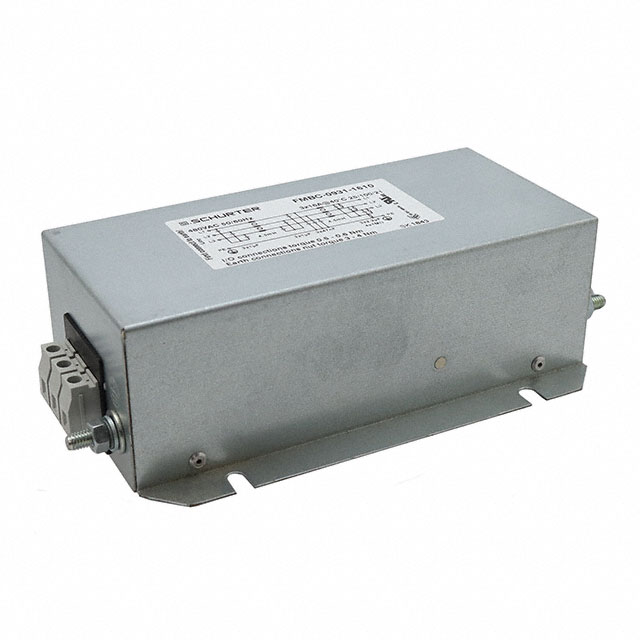

The FMBC-0931-1610 is a three-phase EMC/EMI power line filter from the Schurter FMBC NEO series. It features a two-stage filtering architecture designed for industrial applications. The unit supports a rated current of 16 A and operates at voltages up to 480 VAC (275/480 VAC). It functions at standard frequencies of 50 Hz and 60 Hz. Key electrical parameters include a leakage current of 0.5 mA, ensuring safety compliance. The device utilizes screw terminal block connections for secure installation. Operating temperatures range from -25°C to +100°C. Physical dimensions are approximately 217 mm in depth, with a chassis mount style.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Low leakage current design for personnel safety
• Robust chassis mount construction with screw terminals

Power Line Filter Modules Applications

• Industrial machinery control systems
• Three-phase motor drives
• Power distribution units requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating configuration (275V or 480V) required for your application against the datasheet specifications. Confirm that the terminal block type matches your wiring infrastructure. Ensure the operating temperature environment falls within the specified -25°C to +100°C range. Check for any regional certification requirements such as UL or VDE depending on the deployment location.

Power Line Filter Modules Selection Notes

Select this model when high-performance two-stage filtration is necessary for three-phase systems. It is suitable for environments requiring low leakage current to meet strict safety standards. Consider the physical dimensions and chassis mounting constraints during system design. Compare against single-stage alternatives if space or cost is a primary constraint, noting the superior attenuation of the two-stage design.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMBC NEO series, which focuses on compact and efficient power line filtering solutions. The series is engineered for demanding industrial environments where reliability and electromagnetic compatibility are critical. The FMBC-0931-1610 represents a specific current and voltage configuration within this broader product family.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for direct cross-references. Verify that any substitute part maintains the same two-stage topology and current rating of 16 A. Ensure voltage ratings and physical mounting dimensions are compatible with existing installations.
