HHBC24N-2R1B0039V

Common Mode Chokes Overview

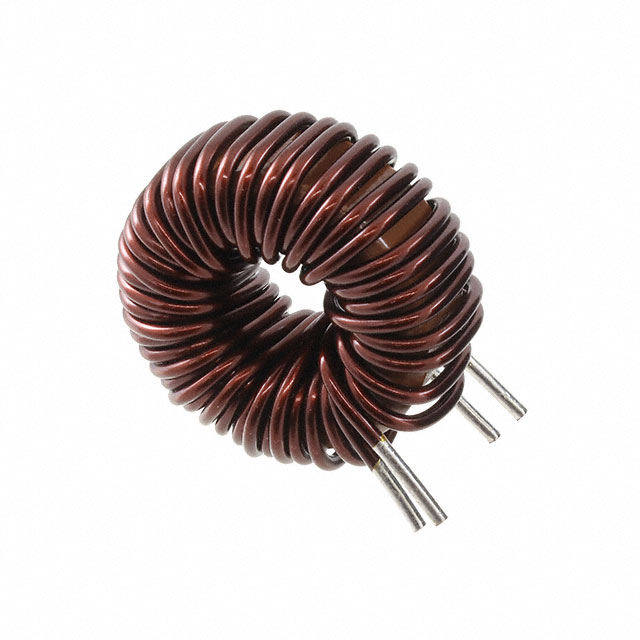

The KEMET HHBC24N-2R1B0039V is a leaded common mode power inductor from the HHBC series, utilizing an iron-silicon (Fe-Si) core. It features a nominal inductance of 39 µH with a tolerance of ±20%. The component supports a maximum DC current rating of 30 A and exhibits a maximum DC resistance of 6.8 mΩ. Designed for through-hole mounting, it operates within a temperature range of -40°C to +120°C.

Common Mode Chokes Feature Summary

• Employs iron-silicon core technology for efficient magnetic performance
• Provides common mode noise suppression via normal mode choke design
• Supports high current handling capabilities suitable for power line filtering

Common Mode Chokes Applications

• AC line filter applications for consumer electronics
• Electromagnetic interference (EMI) noise suppression
• Power supply input stages requiring common mode chokes

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to confirm technical specifications. Ensure compatibility with required current ratings and thermal operating ranges. Cross-reference datasheets for precise dimensional tolerances and mounting requirements before integration into designs.

Common Mode Chokes Selection Notes

Select this component when designing AC line filters that require robust common mode noise attenuation. Consider the 30 A current rating and low DC resistance for efficiency. Verify that the through-hole package fits the target PCB layout and that the operating temperature range meets environmental constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of iron-silicon power inductors. These are classified as normal mode chokes intended for EMI suppression in AC power lines. The series offers various inductance values and current ratings to suit different power filtering requirements across commercial and industrial equipment.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides or equivalent manufacturer datasheets for verified alternatives. Ensure replacement parts match the 39 µH inductance, 30 A current rating, and 6.8 mΩ resistance specifications.
