HHBC24W-2R4A0174V

Common Mode Chokes Overview

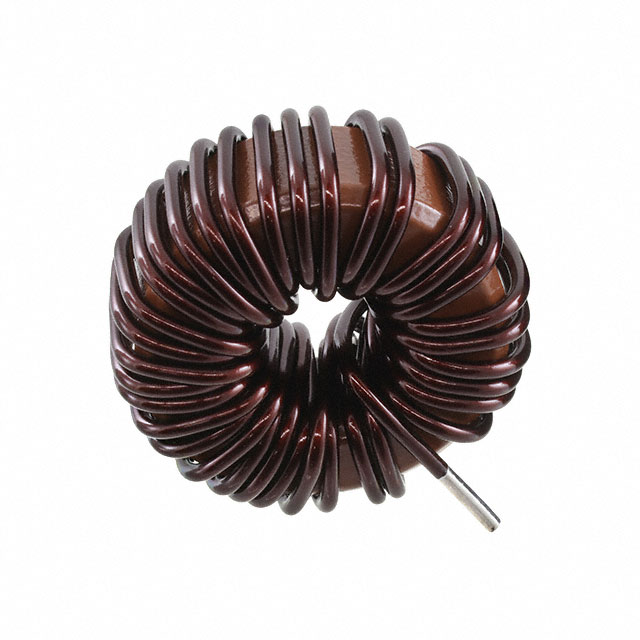

The KEMET HHBC24W-2R4A0174V is a through-hole common mode choke belonging to the HHBC series. It features a toroidal inductor design with an inductance of 174 µH and a rated current of 20 A. The component exhibits a DC resistance of 11.8 mΩ and operates within a temperature range of -40°C to +120°C. It utilizes a radial leaded package suitable for board mounting.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for differential signal lines
• Utilizes a toroidal core structure for high magnetic efficiency
• Supports high current handling capabilities up to 20 A

Common Mode Chokes Applications

• AC/DC power supply input filtering
• EMI suppression in industrial control systems
• Line filter applications for electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific part number HHBC24W-2R4A0174V against manufacturer datasheets to confirm electrical ratings and physical dimensions. Ensure compatibility with existing PCB footprint requirements for radial through-hole mounting. Cross-reference specifications such as inductance tolerance and saturation current to validate suitability for the intended circuit environment.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are required for common mode noise reduction. The 174 µH value offers specific attenuation characteristics at target frequencies. Consider the operating temperature range and physical size constraints of the assembly process when evaluating this toroidal inductor for integration.

Common Mode Chokes Part Context

This component is part of the KEMET HHBC series, which focuses on high-current common mode chokes. These devices are engineered for robust performance in demanding power electronics environments. The series provides reliable EMI/RFI filtering solutions for various industrial and commercial applications requiring stable inductance under load.

Common Mode Chokes Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Ensure any replacement matches the 174 µH inductance, 20 A current rating, and 11.8 mΩ DC resistance. Verify that the alternative component maintains compatible thermal performance and mechanical mounting specifications.
