HS24230

Single Diodes Overview

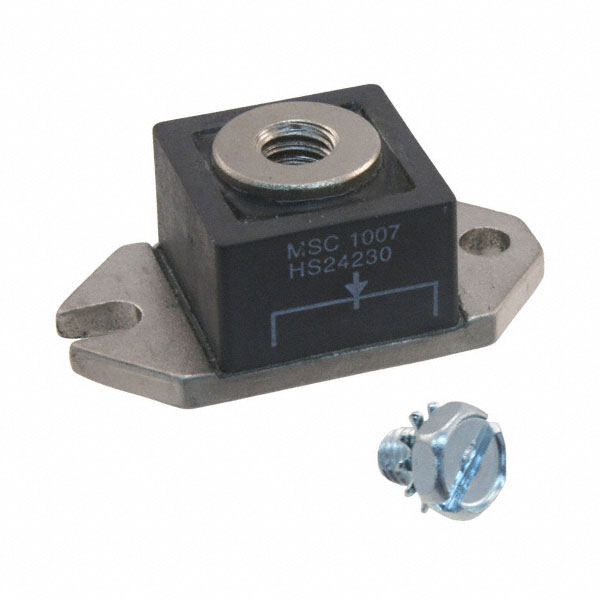

The HS24230 is a 240 Amp Schottky Rectifier manufactured by Microsemi Corporation. It features a maximum repetitive reverse voltage of 30 V and an average forward rectified current of 240 A. The device utilizes a Half-Pak package design, which integrates the diode die into a robust metal housing for efficient thermal management. This component is engineered for high-current applications requiring low forward voltage drop and high reliability.

Single Diodes Feature Summary

• Schottky barrier technology ensures low forward voltage drop for improved efficiency
• Guard ring protection enhances junction stability and reliability
• Half-Pak package provides superior thermal dissipation capabilities
• Reverse energy tested to verify robustness under surge conditions

Single Diodes Applications

• High-current DC-DC converters
• Power supply freewheeling circuits
• Industrial motor drive systems
• Uninterruptible power supply (UPS) units

Single Diodes Procurement Notes

Verify the specific suffix designation against the manufacturer's official datasheet to confirm exact electrical tolerances and packaging variations. Confirm RoHS compliance status as historical Microsemi products may vary in regulatory adherence depending on production date. Ensure the supplier provides traceable documentation matching the original Microsemi part number to avoid counterfeit components.

Single Diodes Selection Notes

Select this component when a 30 V reverse voltage rating and 240 A continuous current capacity are required. The Half-Pak form factor is suitable for applications needing direct mounting to heat sinks for optimal thermal performance. Consider the low forward voltage characteristic for minimizing conduction losses in high-efficiency power conversion designs compared to standard PN junction rectifiers.

Single Diodes Part Context

The HS24230 belongs to the HS24 series of high-power Schottky rectifiers from Microsemi. This family includes variants with different reverse voltage ratings, such as the HS24045 and HS24135, all sharing the same 240 A current handling capability. These devices are designed for demanding industrial and commercial power electronics environments requiring high reliability and ruggedness.

Single Diodes Replacement Considerations

Direct replacements within the same series include HS24045 (45V), HS24135 (135V), and HS24380 (380V), provided the system voltage allows for higher reverse ratings. Verify that the alternative part maintains the Half-Pak package dimensions and thermal characteristics to ensure compatibility with existing PCB layouts and cooling solutions.
