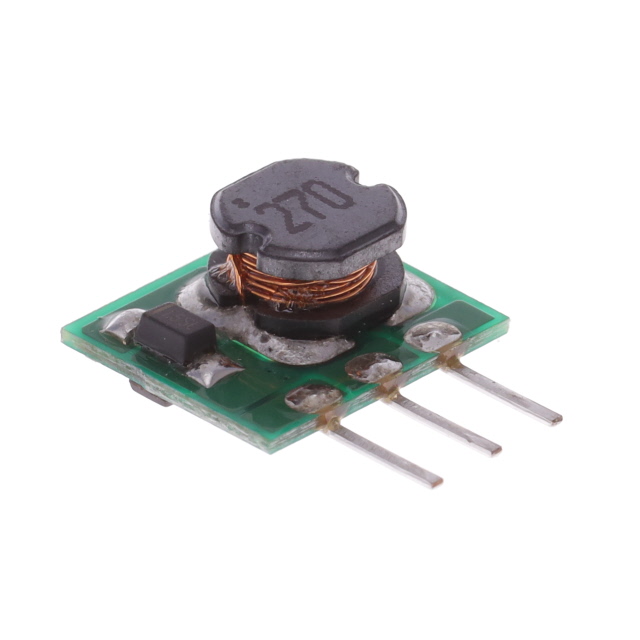

K7805-500R3-LB

K7805-500R3-LB is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is LINEAR REGULATOR REPLACEMENT DC. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for K7805-500R3-LB

• Description：LINEAR REGULATOR REPLACEMENT DC
• Series：K78XX-500R3-LB
• Mfr：Mornsun America, LLC
• Package：Tray
• Type：Linear Regulator Replacement
• Number of Outputs：1
• Voltage - Input (Min)：6.5V, 7V
• Voltage - Input (Max)：36V, 31V
• Voltage - Output 1：5V, -5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA, 300mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.40" L x 0.24" W x 0.34" H (10.3mm x 6.0mm x 8.6mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1

DC DC Converters datasheet and documents for K7805-500R3-LB
