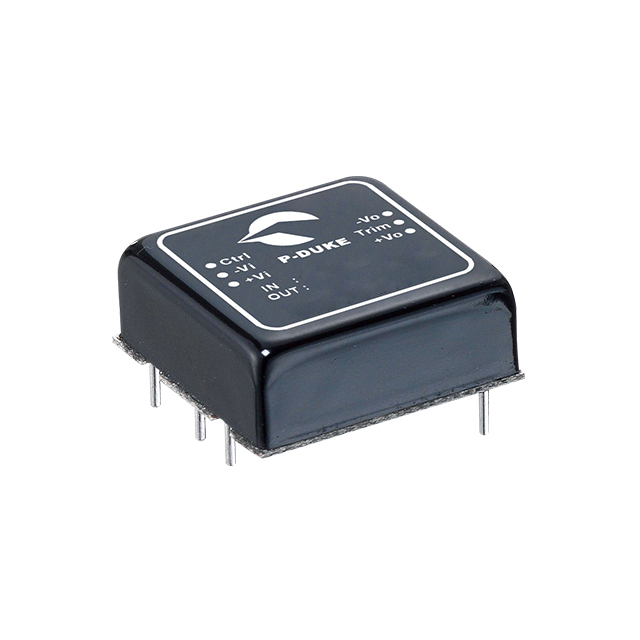

LCD30-48S05W

LCD30-48S05W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for LCD30-48S05W

• Description：DC DC CONVERTER 5V 30W
• Series：LCD30W (30W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：30 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, Standby Output
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for LCD30-48S05W
