LMV881LEE/NOPB

Instrumentation, Op Amps, Buffer Amps Overview

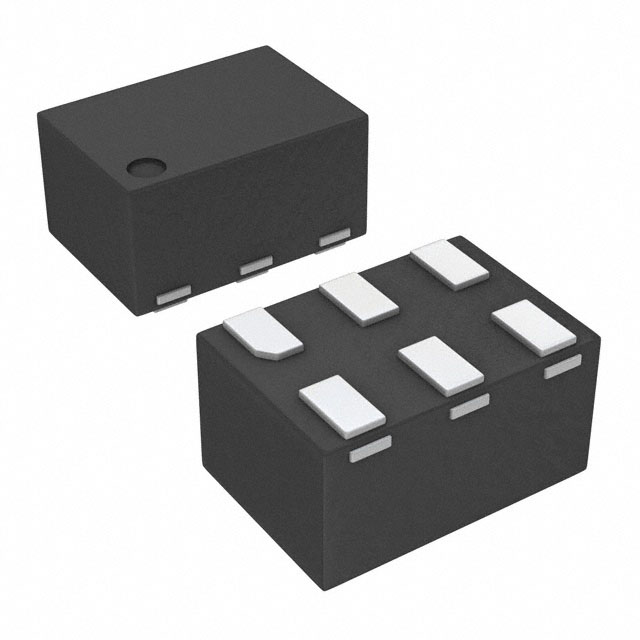

The LMV881LEE/NOPB is a single-channel precision operational amplifier manufactured by Texas Instruments. It features a gain-bandwidth product of 23 MHz and a slew rate of 12 V/us. The device operates within a supply voltage range of 2.7 V to 5.5 V, consuming 1.9 mA of quiescent current per channel. Key electrical specifications include an input offset voltage of 273 uV, input bias current of 100 fA, and common-mode rejection ratio of 94 dB. Input and output voltage noise densities are 9 nV/sqrt Hz. The component supports rail-to-rail input and output operation and is housed in a USON-6 surface-mount package.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• EMI hardened design for robust performance in noisy environments
• Rail-to-rail input and output capability for maximum dynamic range
• Low power consumption suitable for battery-operated applications

Instrumentation, Op Amps, Buffer Amps Applications

• Signal conditioning in industrial sensor interfaces
• Data acquisition systems requiring high precision
• Medical instrumentation with strict EMI requirements

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the exact part number suffix against official Texas Instruments documentation to ensure correct package and temperature grade specifications. Confirm RoHS compliance status through the manufacturer's datasheet or certification documents prior to procurement. Cross-reference ordering information with authorized distributors to validate authenticity and traceability.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when EMI immunity and precision are critical alongside low power consumption. Compare input offset voltage and bias current requirements against alternative models in the LMV series. Ensure the USON-6 package fits the available PCB footprint constraints and thermal management needs.

Instrumentation, Op Amps, Buffer Amps Part Context

This device belongs to the LMV881 family of precision operational amplifiers designed for CMOS technology. It offers enhanced electromagnetic interference resistance compared to standard general-purpose op amps. The family targets applications demanding signal integrity in electrically hostile environments while maintaining low power efficiency.
