LSIC2SD170B25

Single Diodes Overview

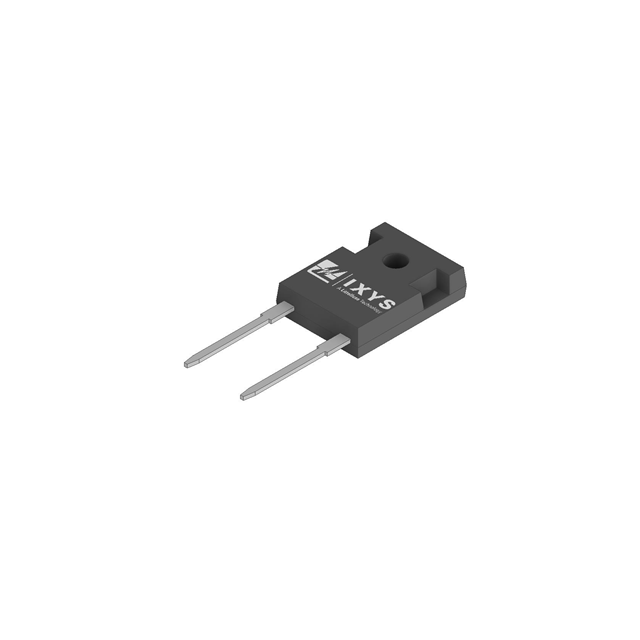

The Littelfuse LSIC2SD170B25 is a Silicon Carbide Schottky Barrier Diode rated for 1700 V repetitive peak reverse voltage and 25 A continuous forward current at 150 °C case temperature. It features a TO-247-2L package with a maximum thermal resistance of 0.44 °C/W. The device supports a junction temperature range from -55 °C to 175 °C and exhibits zero reverse recovery current.

Single Diodes Feature Summary

• Positive temperature coefficient ensures safe operation and facilitates easy paralleling.
• Extremely fast, temperature-independent switching behavior dramatically reduces switching losses compared to silicon bipolar diodes.
• Zero reverse recovery current eliminates tail current issues during commutation.

Single Diodes Applications

• Boost diodes in PFC or DC/DC stages
• Switch-mode power supplies
• Solar inverters
• Uninterruptible power supplies
• Industrial motor drives

Single Diodes Procurement Notes

Verify the specific ordering suffix and lot number against the latest manufacturer datasheet before finalizing procurement. Confirm that the TO-247-2L package dimensions and mounting torque requirements align with the target PCB layout and heatsink interface specifications for the intended application design.

Single Diodes Selection Notes

Select this component for high-voltage applications requiring low switching losses and high thermal stability. Ensure the operating junction temperature remains within the specified -55 °C to 175 °C range. Evaluate the thermal management solution to maintain case temperatures within limits that support the required continuous forward current derating curves.

Single Diodes Part Context

This part belongs to the LSIC2SD series of second-generation Silicon Carbide Schottky Barrier Diodes from Littelfuse. The series is designed to replace traditional silicon devices in high-efficiency power conversion systems, offering superior performance in terms of switching speed and thermal handling capabilities.

Single Diodes Replacement Considerations

Consult official Littelfuse documentation for verified direct replacements. Cross-reference pinouts, voltage ratings, and thermal characteristics when considering alternative manufacturers' components to ensure functional compatibility.
