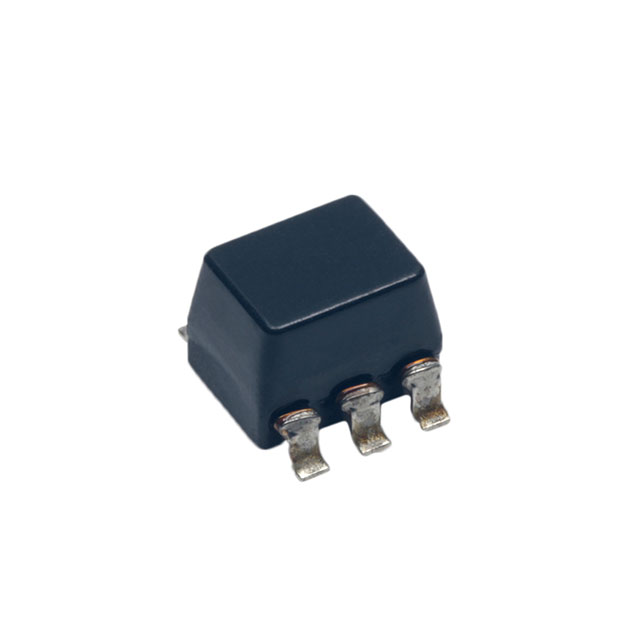

M-532CT

$2.24

Description：CMC 500MA 3LN SMD
Series：M-500CT
Mfr：KEMET
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:721662ecb6b2 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M-532CT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 500MA 3LN SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for M-532CT

Description：CMC 500MA 3LN SMD
Series：M-500CT
Mfr：KEMET
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：3
Current Rating (Max)：500mA
DC Resistance (DCR) (Max)：90mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.354" L x 0.295" W (9.00mm x 7.5mm)
Height (Max)：0.220" (5.60mm)
Package / Case：Vertical, 6 Gull Wing
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for M-532CT

M-532CT

Common Mode Chokes Overview

The M-532CT is a surface-mount common mode choke manufactured by KEMET. It features an inductance of 450 uH and operates at a test frequency of 100 kHz. The component has a maximum DC resistance of 0.08 Ohms and supports a current rating of 1 A. Its physical dimensions are 7.6 mm in length, 5.0 mm in width, and 5.0 mm in height.

Common Mode Chokes Feature Summary

Designed for high-frequency common mode noise suppression
Surface-mount construction for automated assembly

Common Mode Chokes Applications

DC line filtering
Signal processing circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer datasheet to confirm RoHS compliance status and detailed packaging specifications. Ensure that the selected variant matches the required inductance tolerance and current handling capabilities for the target application environment.

Common Mode Chokes Selection Notes

Select this component when high-frequency noise attenuation is required on DC lines or signal paths. Consider the 1 A current rating and low DC resistance for power integrity. The surface-mount package facilitates integration into compact electronic designs requiring efficient space utilization.

Common Mode Chokes Part Context

This part belongs to the M-500CT series of common mode chokes from KEMET. These components are engineered for signal integrity and EMI reduction in modern electronics. The series provides reliable performance for filtering applications across various industrial and consumer technology sectors.
