M22-2210246

Headers, Male Pins Overview

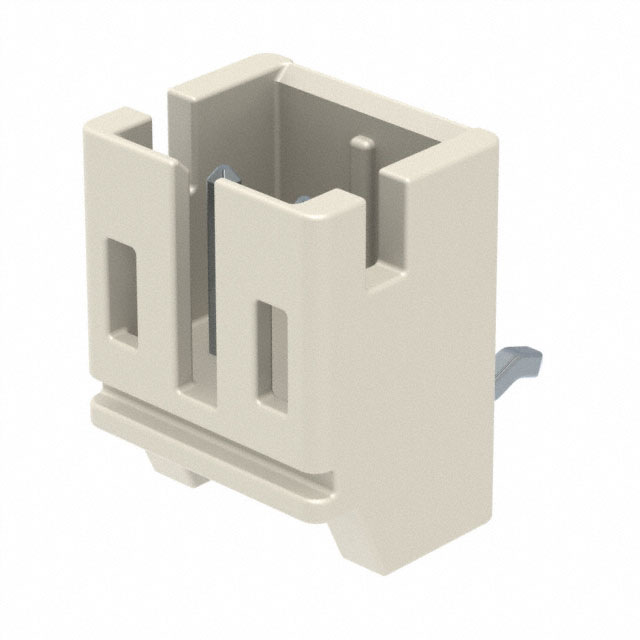

The Harwin M22-2210246 is a right-angle pin header from the M22 series, featuring a 2.00 mm pitch and two positions. It utilizes tin-plated phosphor bronze contacts with a current rating of 2A per contact and a voltage rating of 100V. The connector employs a vertical shrouded design for board-to-board or cable applications, installed via through-hole soldering. Constructed with nylon insulation, it operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates compact PCB layout integration
• Shrouded housing design ensures precise alignment during mating
• Tin-plated contacts provide reliable electrical connectivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Compact electronic device assemblies

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Harwin documentation. Confirm that the specific ordering suffix matches the required right-angle, shrouded configuration. Ensure compatibility with existing PCB footprint designs before procurement. Check for end-of-life status notifications as this item may be scheduled for obsolescence.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for two-position circuits. The shrouded design aids in preventing misalignment during assembly. Verify that the 2A current rating and 100V voltage limits meet system requirements. Consider the through-hole mounting style and tin plating finish for environmental suitability.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which offers various header configurations with a standard 2.00 mm pitch. The series provides options for different row counts, angles, and plating finishes to suit diverse electronic interconnection needs. The M22-2210246 specifically addresses space-constrained applications requiring right-angle entry.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. As the product lifecycle indicates scheduled obsolescence, consult the manufacturer for active replacement recommendations.
