M22-5330205

Headers, Male Pins Overview

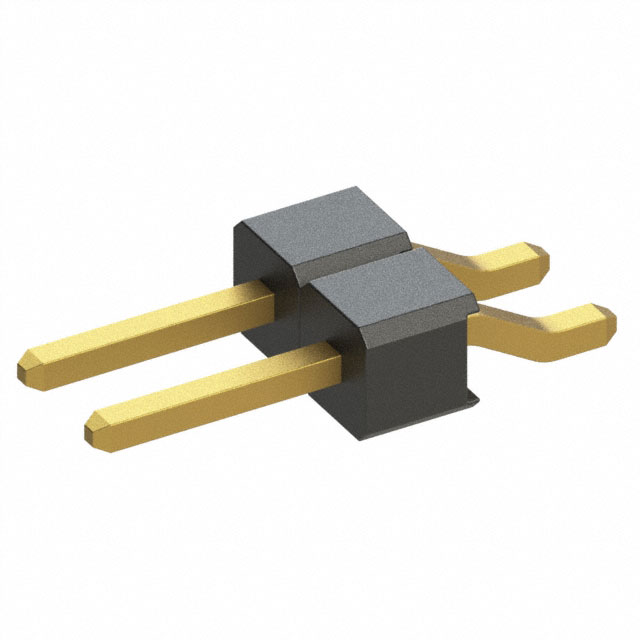

The M22-5330205 is a surface mount pin header from the Harwin M22 series. It features a single row with two positions and a 2 mm pitch. The connector is designed for right-angle horizontal mounting on printed circuit boards. It utilizes gold-plated contacts to ensure reliable signal transmission. The assembly includes a mating pin length of 4.2 mm, facilitating secure connection with compatible female receptacles.

Headers, Male Pins Feature Summary

• Surface mount technology implementation for automated PCB assembly
• Right-angle orientation for compact board-to-board connectivity
• Gold-plated contact finish for corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Mating with female receptacle cable housings
• Integration with associated crimp contact product families

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status via official documentation before integration. Ensure storage conditions maintain contact integrity. Validate mechanical fit within the target assembly design constraints prior to procurement commitment.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle surface mount headers with minimal footprint. The 2 mm pitch suits dense layout requirements. Verify compatibility with mating female housings and crimp contacts. Consider the single-row configuration for simple signal routing needs.

Headers, Male Pins Part Context

This part belongs to the M22 series of connectors by Harwin Inc., known for high-density interconnect solutions. The series offers various configurations including vertical and horizontal orientations. The M22-5330205 specifically addresses space-constrained designs needing robust surface mount capabilities.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
