M22-6360542

Headers, Receptacles, Female Sockets Overview

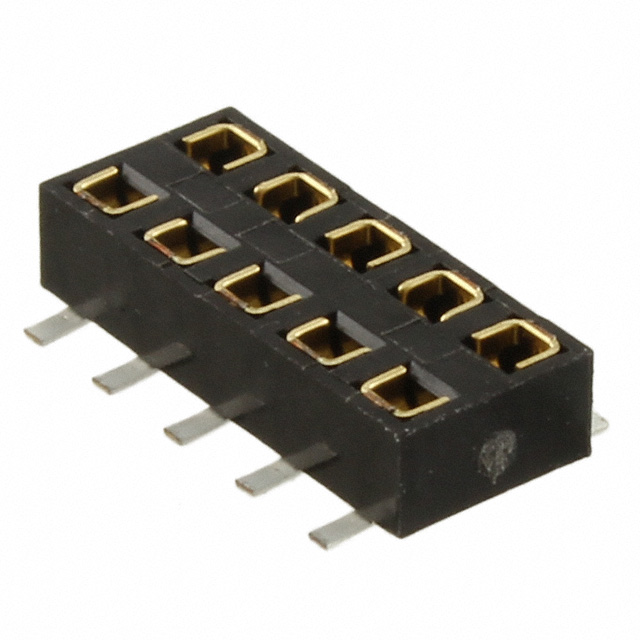

The Harwin M22-6360542 is a 10-position surface mount receptacle connector from the M22 series, featuring a 2.00mm pitch and dual-row configuration. It utilizes phosphor bronze contacts with gold plating for mating surfaces and tin over nickel for termination. Designed for board-to-board or cable applications, it supports bottom or top entry and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-entry design accommodates both top and bottom insertion for flexible PCB layout
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Surface mount construction facilitates automated assembly processes
• Push-pull locking mechanism provides secure mechanical retention

Headers, Receptacles, Female Sockets Applications

• General-purpose industrial equipment interconnections
• Telecommunications system board-to-board linking
• Consumer electronics internal circuit connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required contact count and orientation. Confirm that the surface mount footprint aligns with the PCB design guidelines provided in the official datasheet. Ensure compliance with RoHS standards if required by the end product specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, dual-row surface mount solution is required for 2mm pitch applications. The dual-entry feature offers routing flexibility compared to single-entry variants. Consider the operating temperature range and current ratings to ensure suitability for the specific electrical environment.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the M22 EZ Boardware family, characterized by its 2mm pitch and square pin connection system. The series is designed for high-density applications requiring robust mechanical durability and reliable electrical performance in compact spaces.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes within the same series include other pin counts such as M22-6361042R (20 positions) or M22-078050V4005 (80 positions). Verify that any replacement maintains the same 2mm pitch, surface mount style, and dual-entry capability.
